230V~ LED flasher

original article (roumanian language)

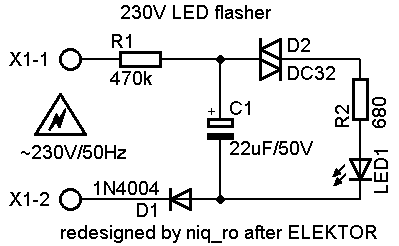

In a old paper magazine named ELEKTOR I found a nice schematic

Using Eagle PCB software I designed a version for made this schematic:

montage

3D montage

board

On net, I found a movie with similar montage, named 110 or 240 Volts blinking LED:

If you put this module in parallel with a incandescent bulb, LED flash when bulb is on (work with led lamp or other lamp):

230V~LED flasher when bulb lamp is ON

If you put this module in parallel with switch at incandescent bulb circuit, LED flash when bulb is off:

230V~LED flashet whem bulb lamp is OFF

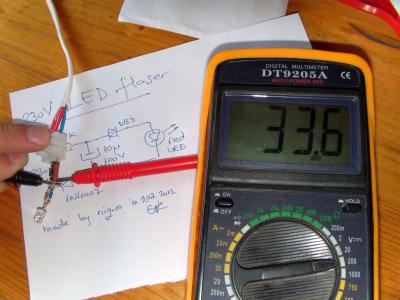

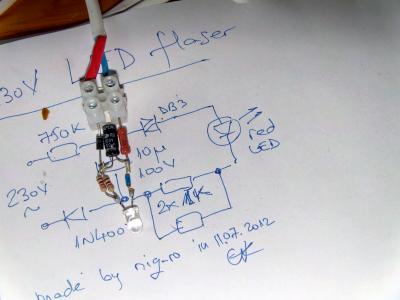

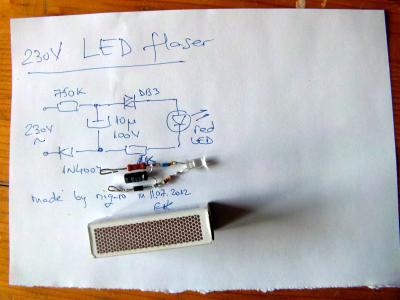

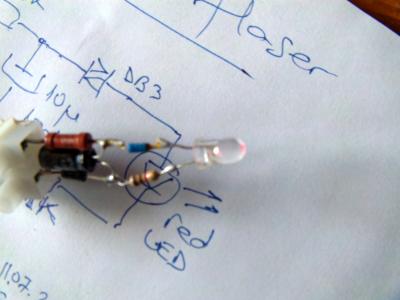

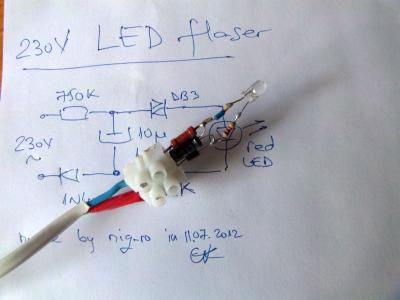

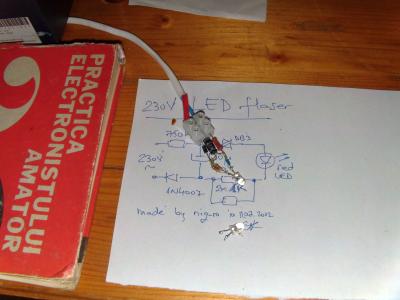

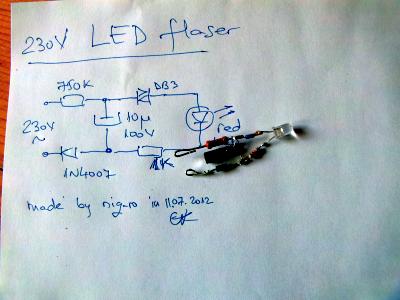

I made simple circuit in air:

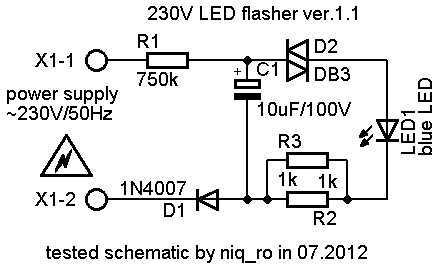

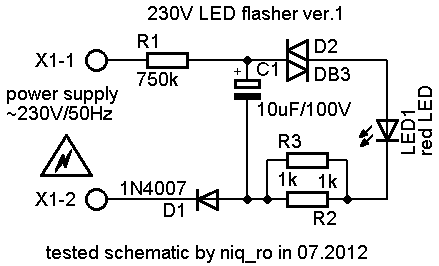

tested schematic

tested schematic

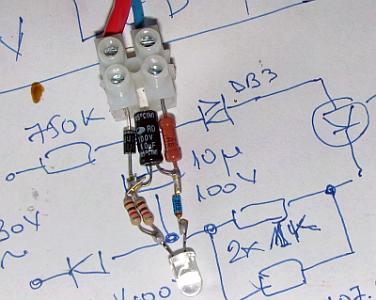

I put a additional resistor for better intensity of LED:

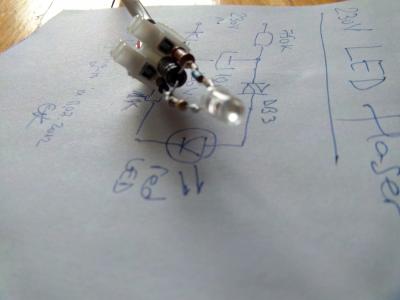

I change red led wih blue led:

I made a movie named 230V LED flasher



back to main page !!!
