Toy Elevator

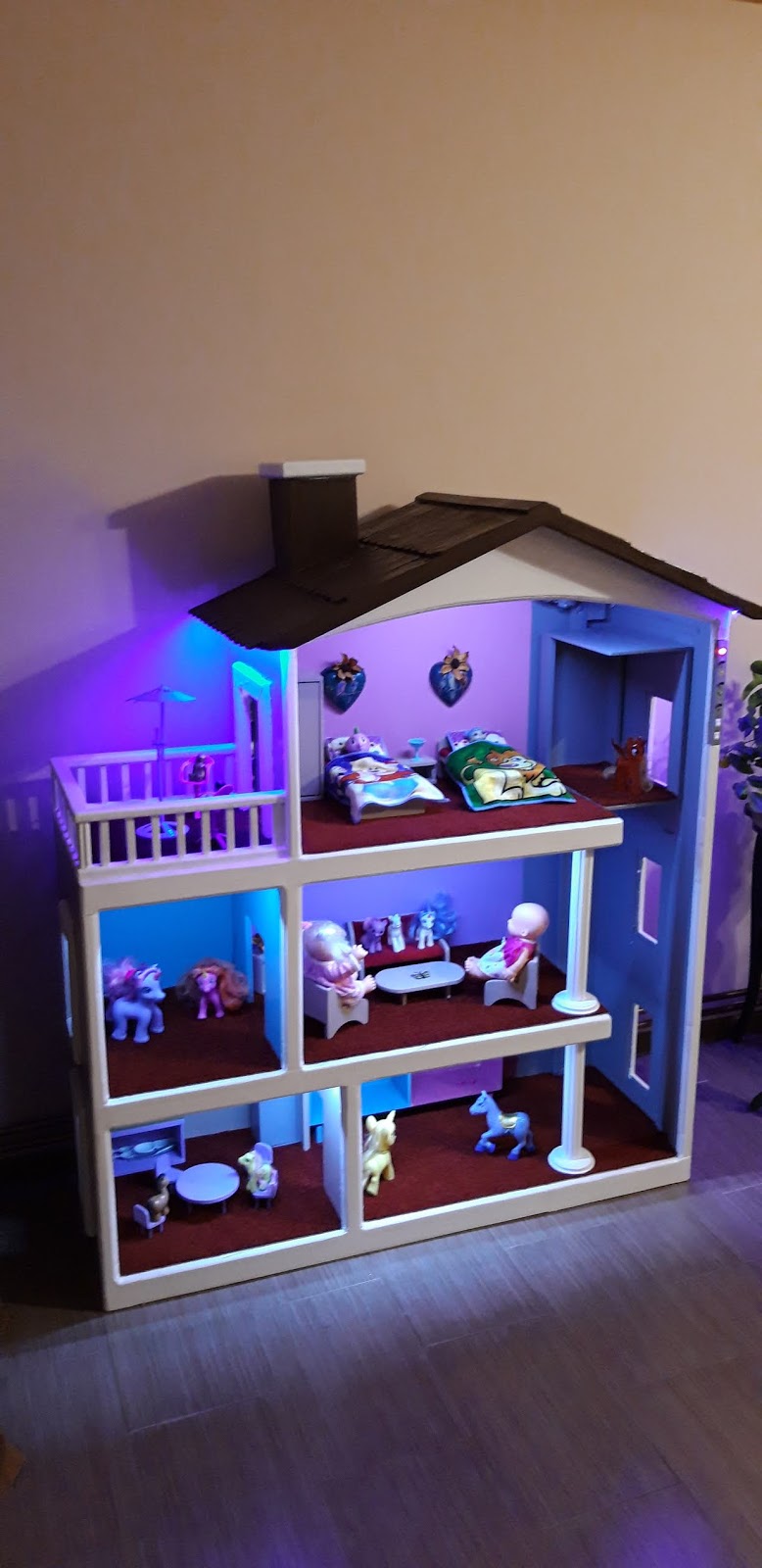

My friend Tom made a toy house with elevator…


and I writted an Arduino sketch for toy elevator with 3 stations.

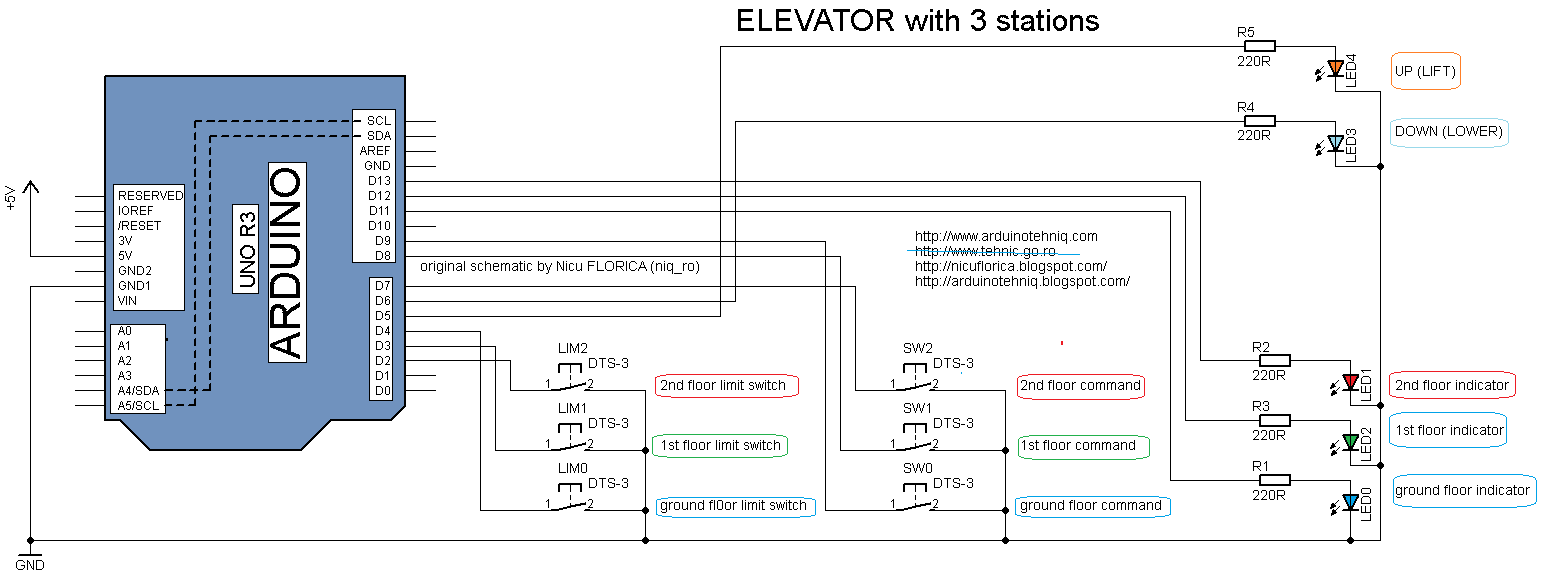

First, I design schematic:

This schematic has:

  • 3 buttons
  • 3 limit switch
  • 3 leds for see position of elevator
  • 2 leds for see the direction of movement.

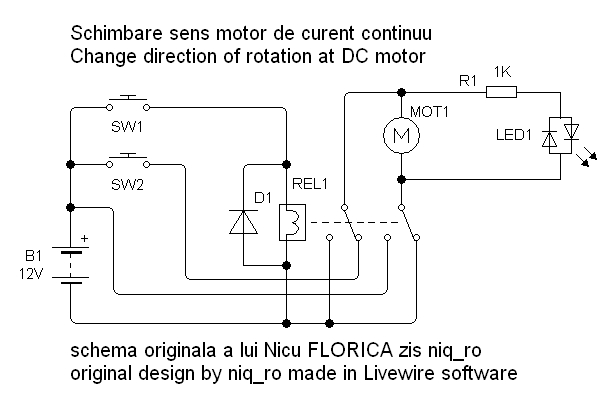

For control in both direction the DC motor I use info from article named http://nicuflorica.blogspot.com/2014/05/circuit-de-schimbare-polaritate.html

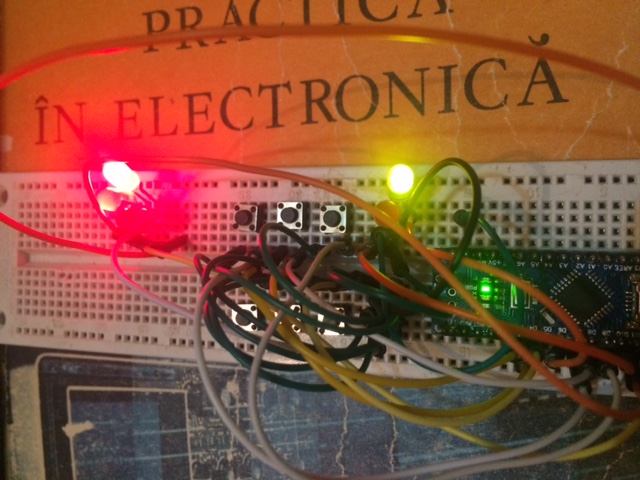

My test montage I use breadboard and few wires:

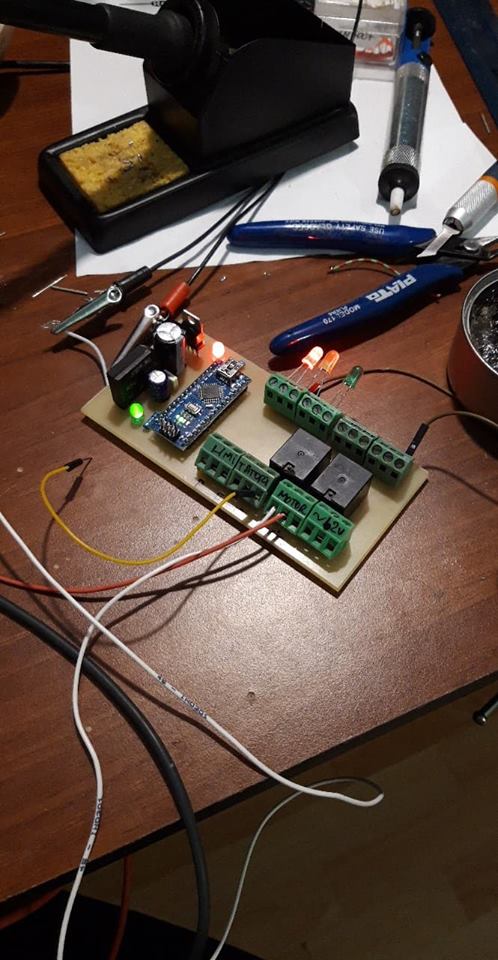

but Tom made a PCB

I made more movies with test, but I recommand you elevator with 3 stations (2)

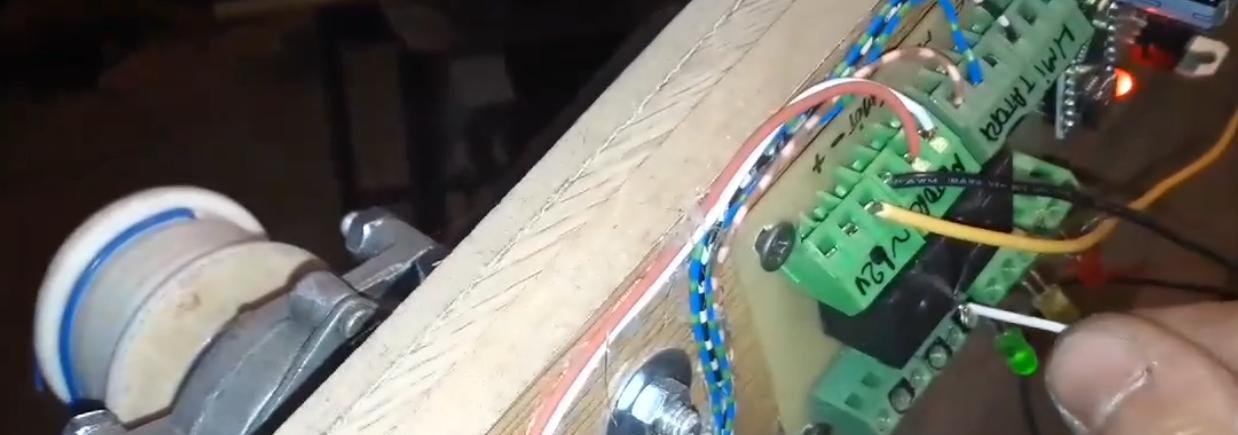

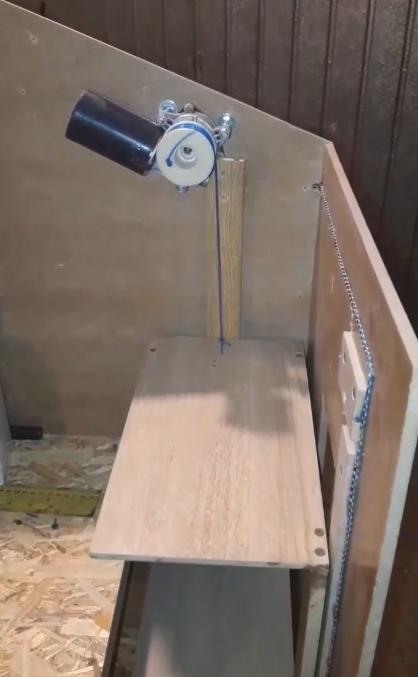

Tom made more movies, but I recommand you lift cu 3 statii – teste practice Tom (2)

and lift cu 3 statii – teste practice Tom (3)

All tests work with sketch toy_elevator.ino !!!
