Solve problem with “511” at W5100 Ethernet shield

I have an W5100 Ethernet shiled who work ok in home network, but notwork in other network, so I search about this problem and find solution.

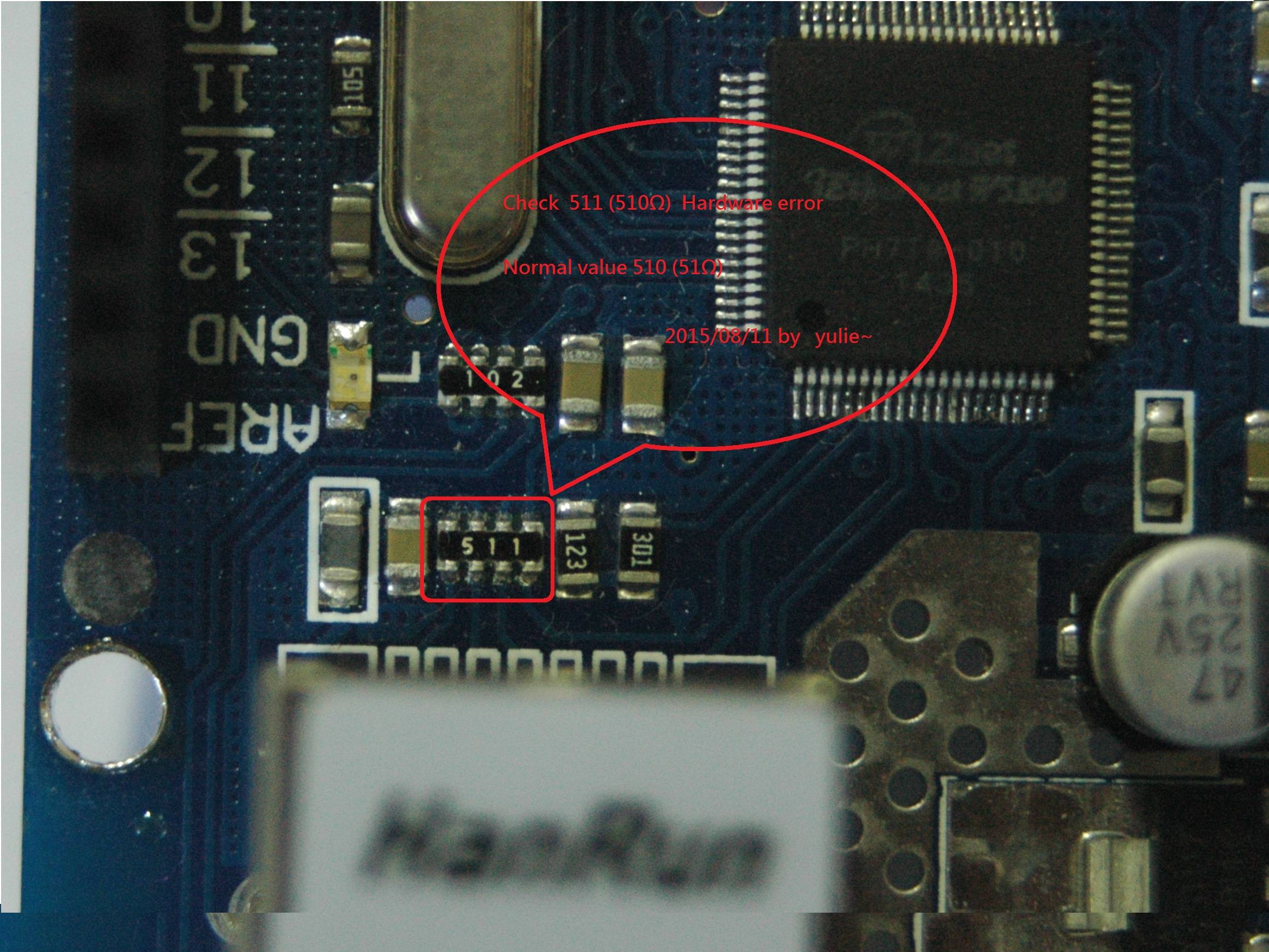

In my case, manufacturer put a wrong value for a quad resistor, instead 51 ohms (noted 510) was put 510 ohms (noted 511)…

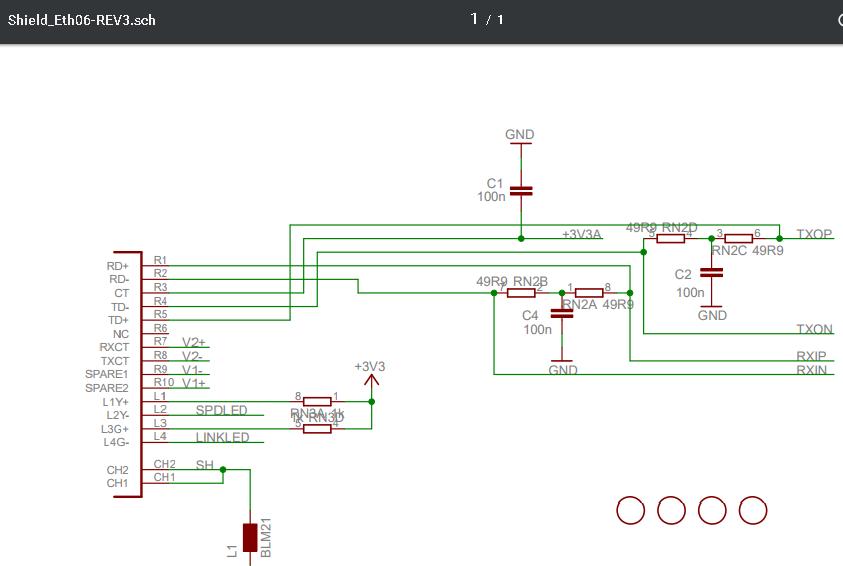

Original shield have 49R9 (49.9 ohms), see schematic.


In article named The W5100 bug(s) – and how to fix it (them) are presented more problems.

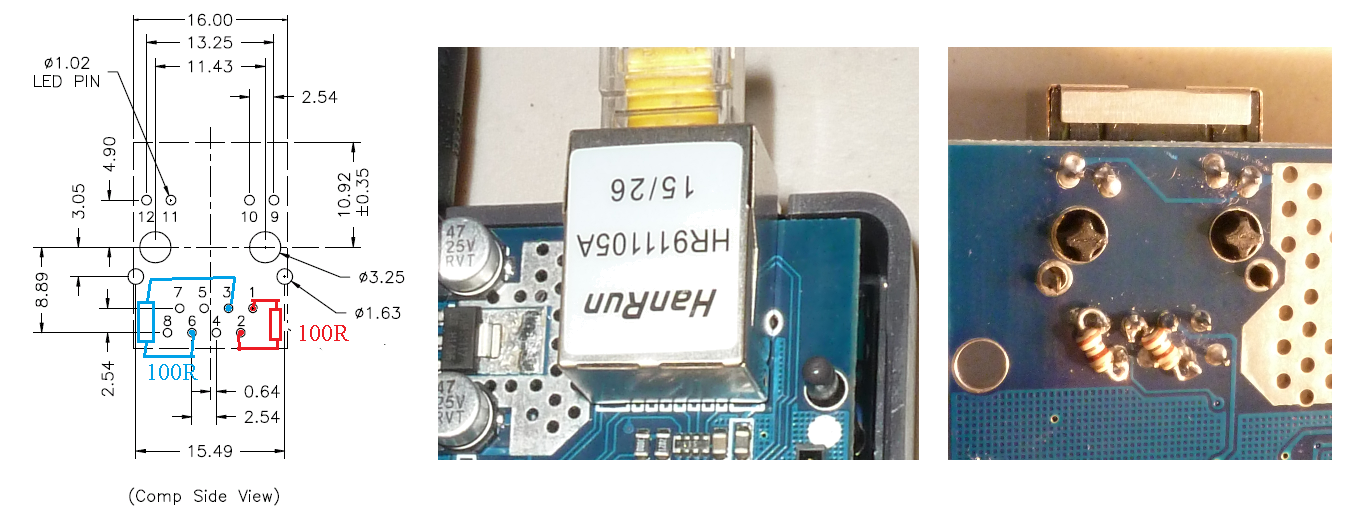

For my problem, exist 2 solutions: change qaud resistor or put 2 resistor with 100 ohms value at Ethernet connector.

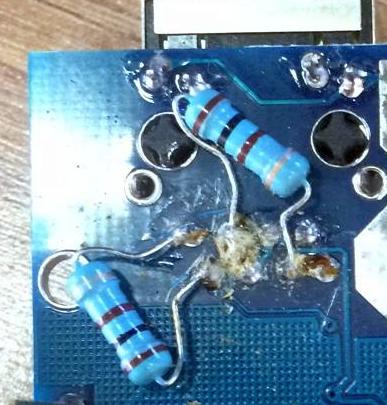

Second solution is easy and quickly, so I made this modifications

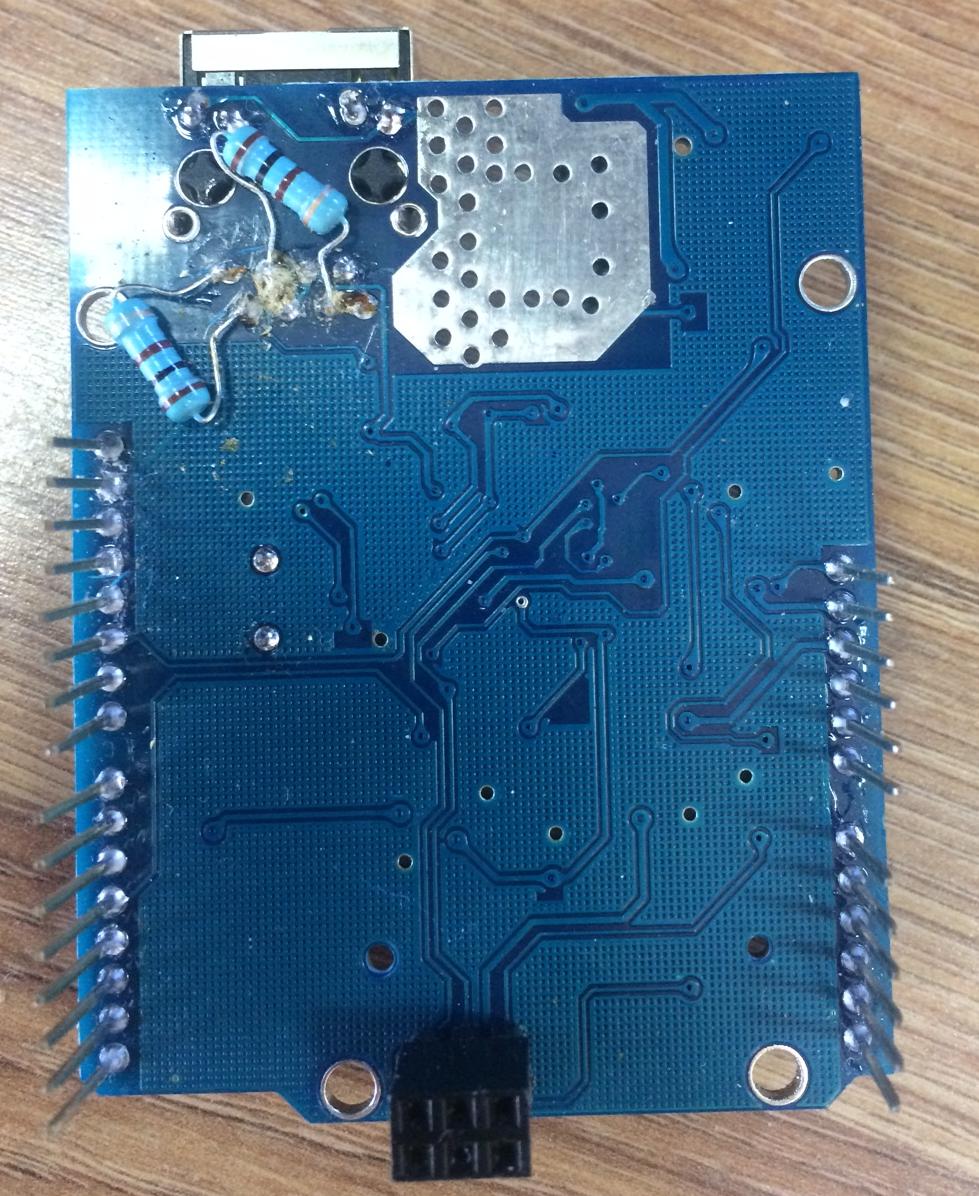

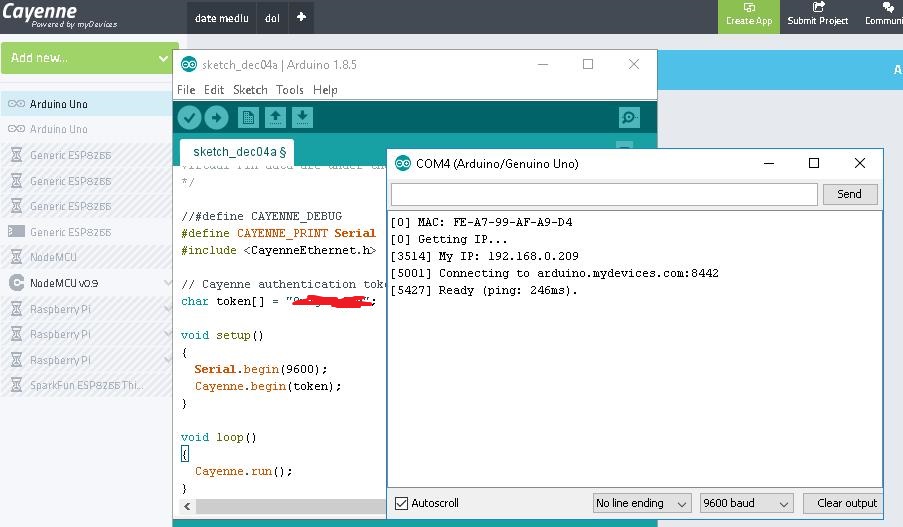

and now W5100 Ethernet shield works
