Prepare Eagle PCB project to generate Gerber files and than to order custom board

If you want to order custom PCB made after your project and use EAGLE PCB software must have Gerber files.

For generate Gerber files I use tutorial publish on and named How to generate Gerber and Drill files from Eagle.

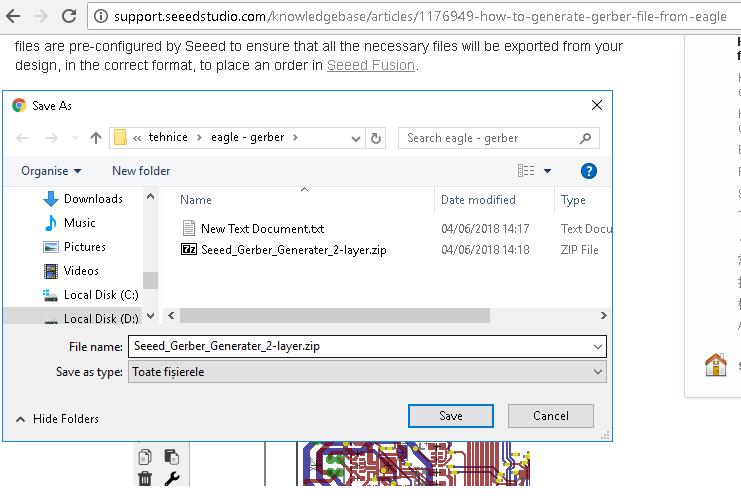

I download cam file for 2 layers board from HERE !

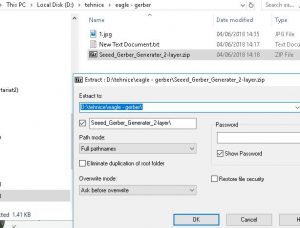

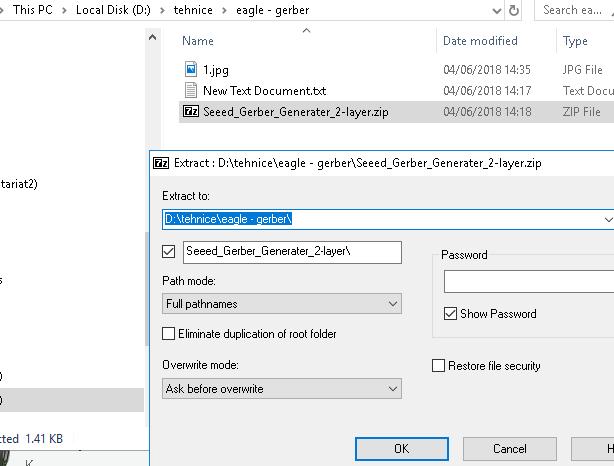

You must extract file from archieve

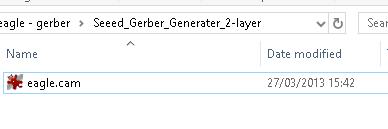

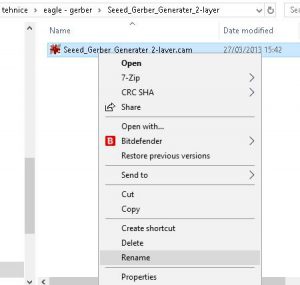

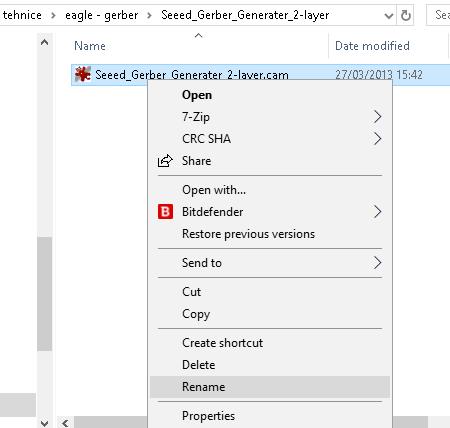

For automatic upload by EAGLE PCB software change name to

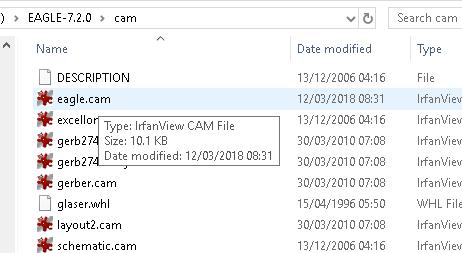

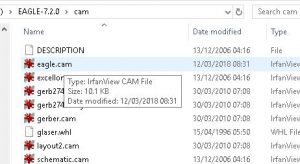

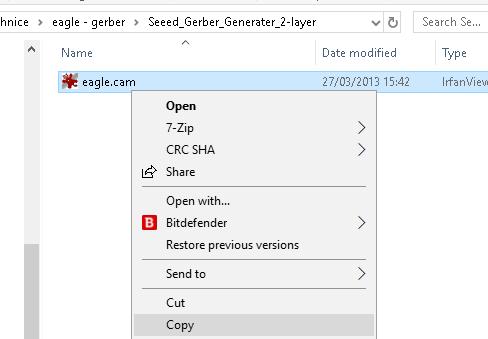

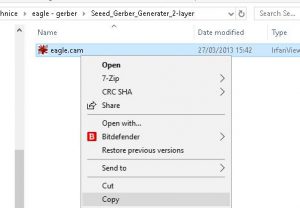

After that, you must copy file to CAM subdirectory from EAGLE PCB software

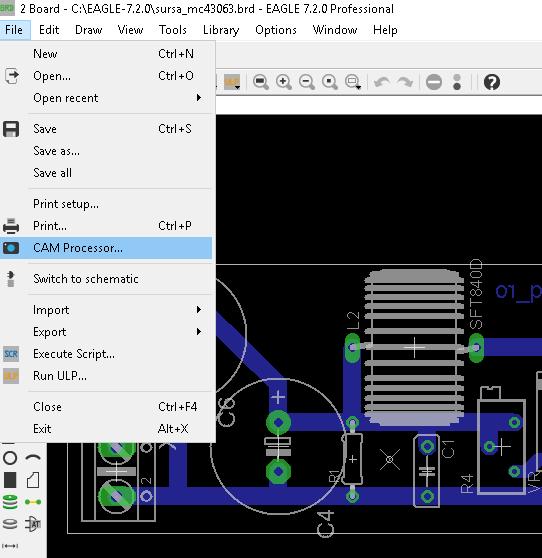

Open Eagle PCB program and open an project..

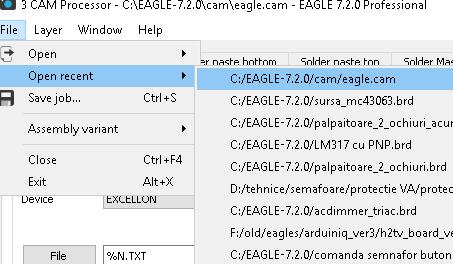

Verify is on directory…

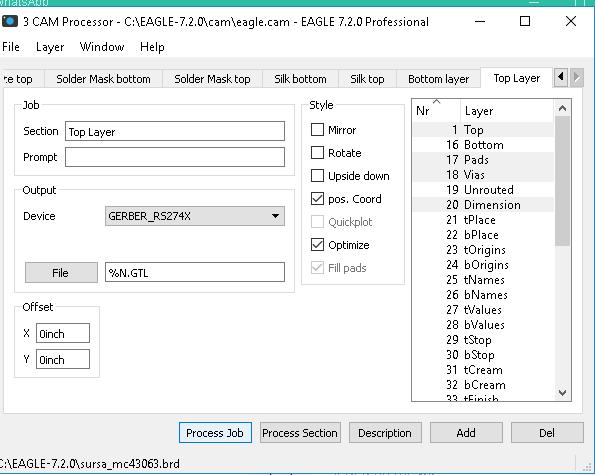

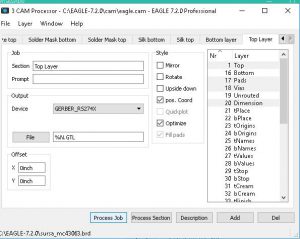

And after that click on PROCESS JOB button

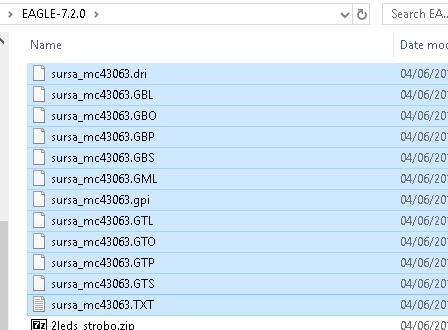

Select last files create

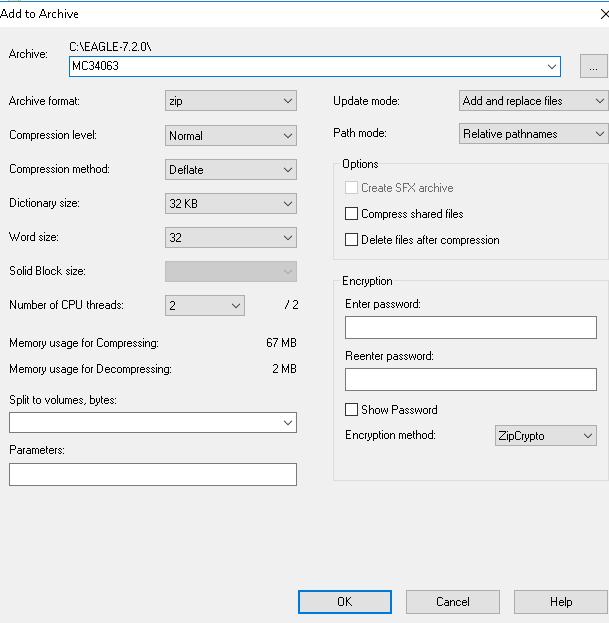

Add to archieve

and you will see

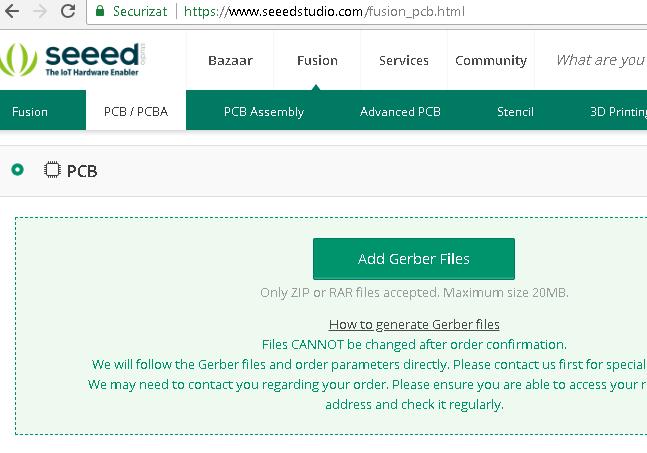

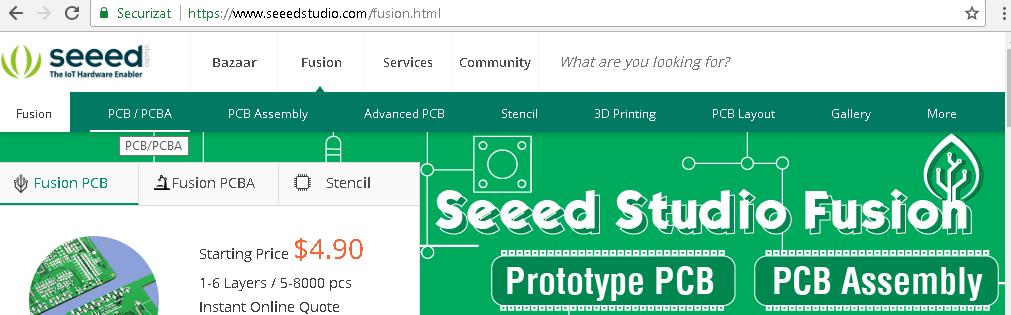

Now, you must open Seeed Fusion Studio page

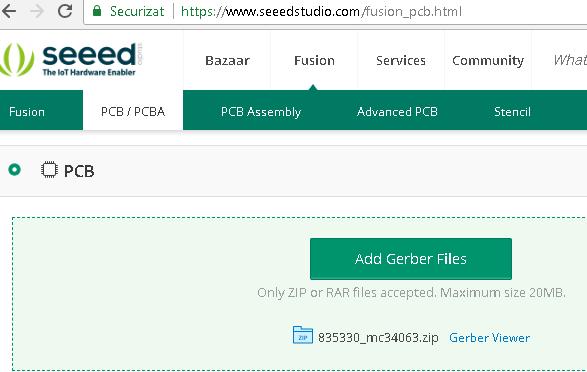

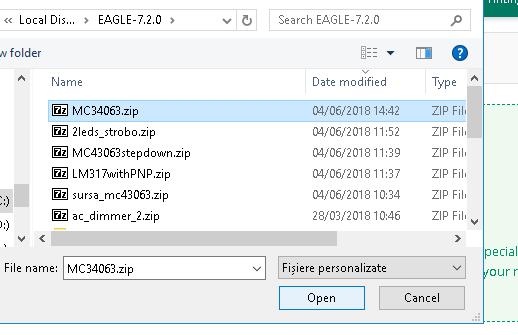

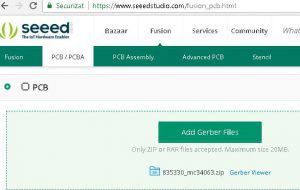

Select PCB/PCBA section and add Gerber files (as archieve)

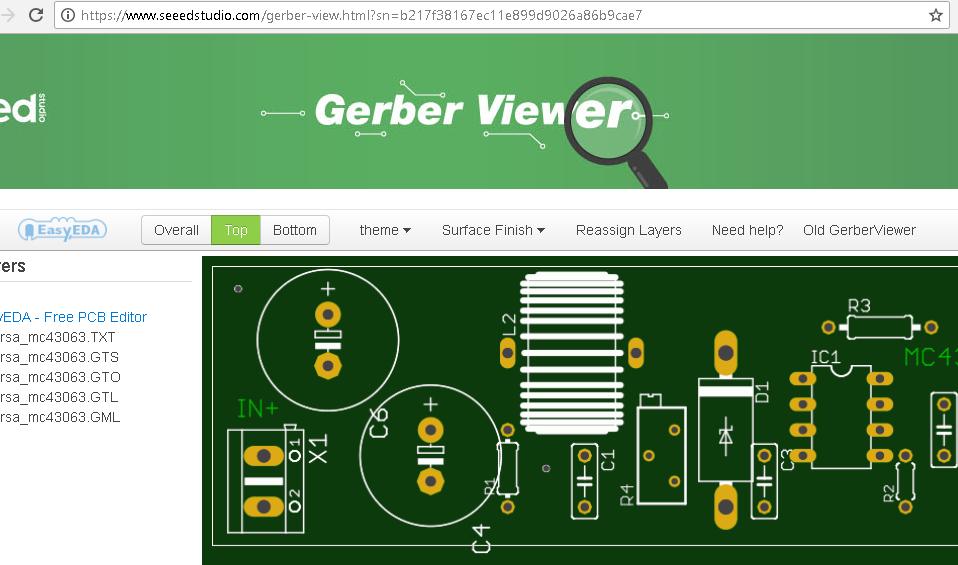

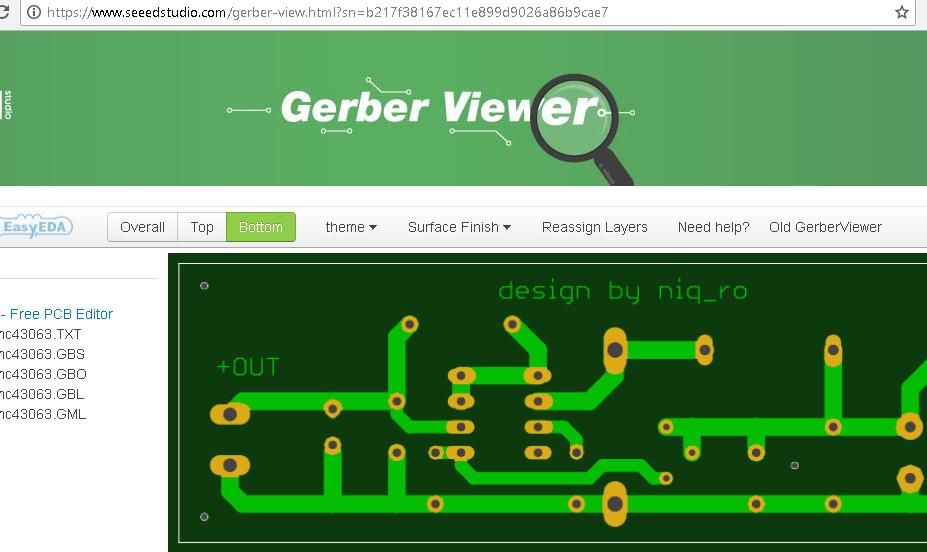

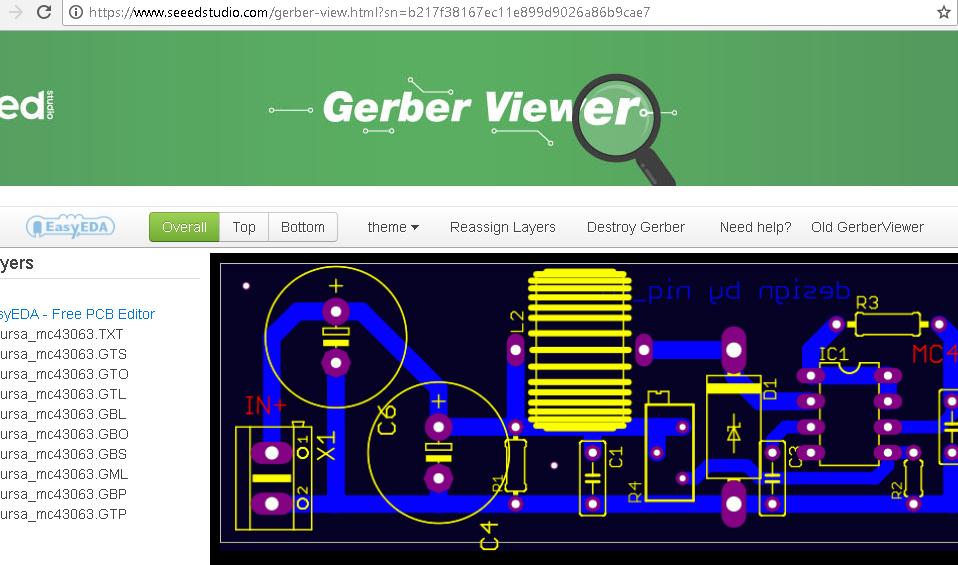

After that you can preview PCB who will made

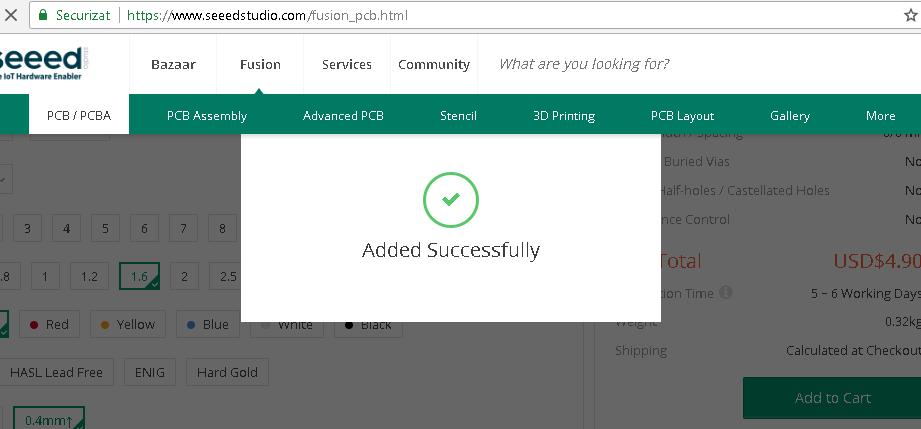

If you have acount on page can put directly in chart

and after must give ship adress and pay … and wait to receive the boards..

PS: After I receive the board, I will put the photos with them.. untill you can order some boards at PCB manufacturing or order full devices at  PCB assembly.

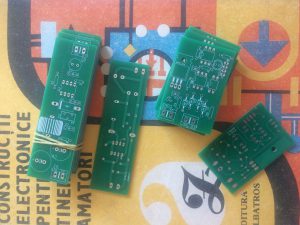

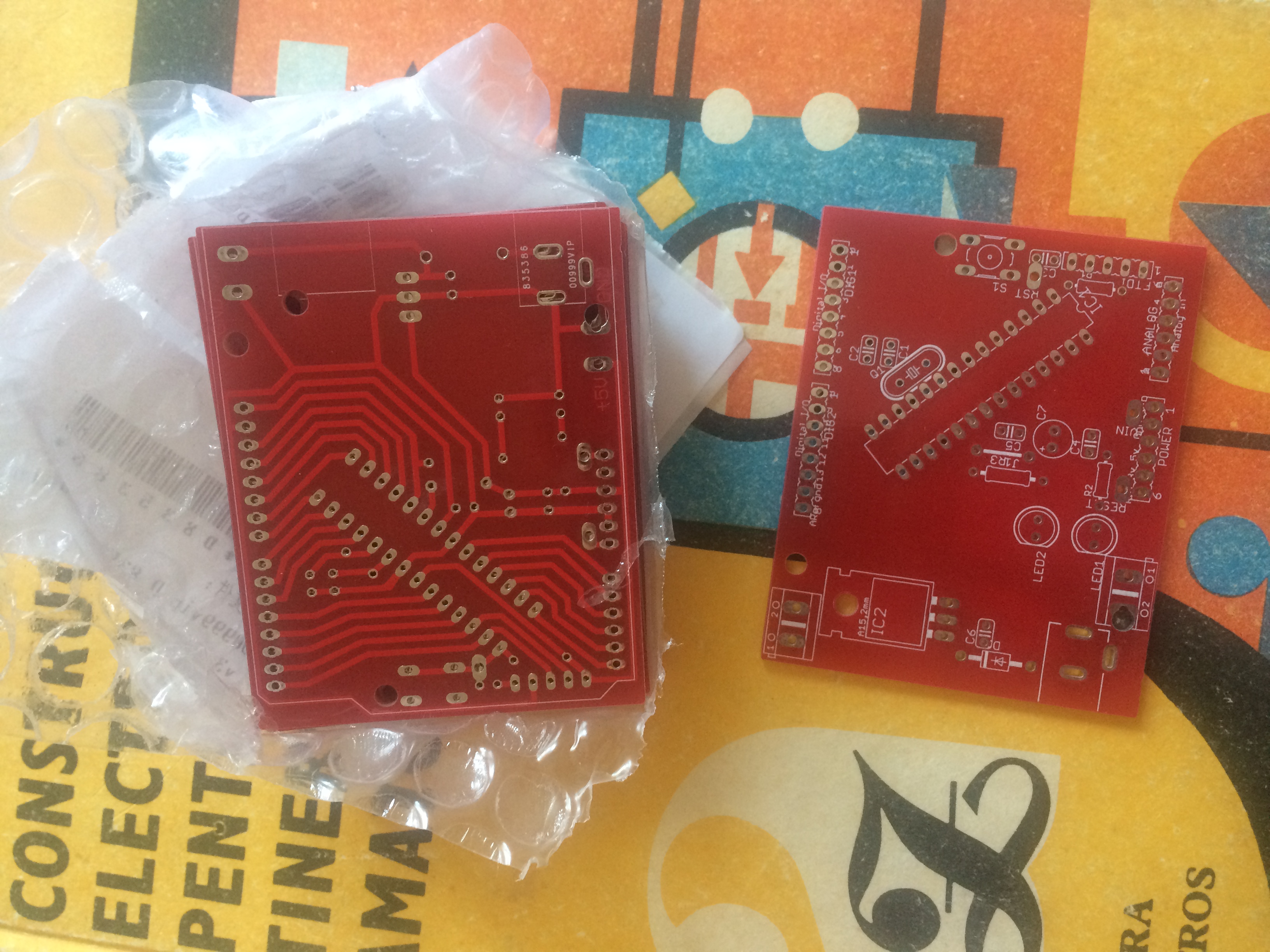

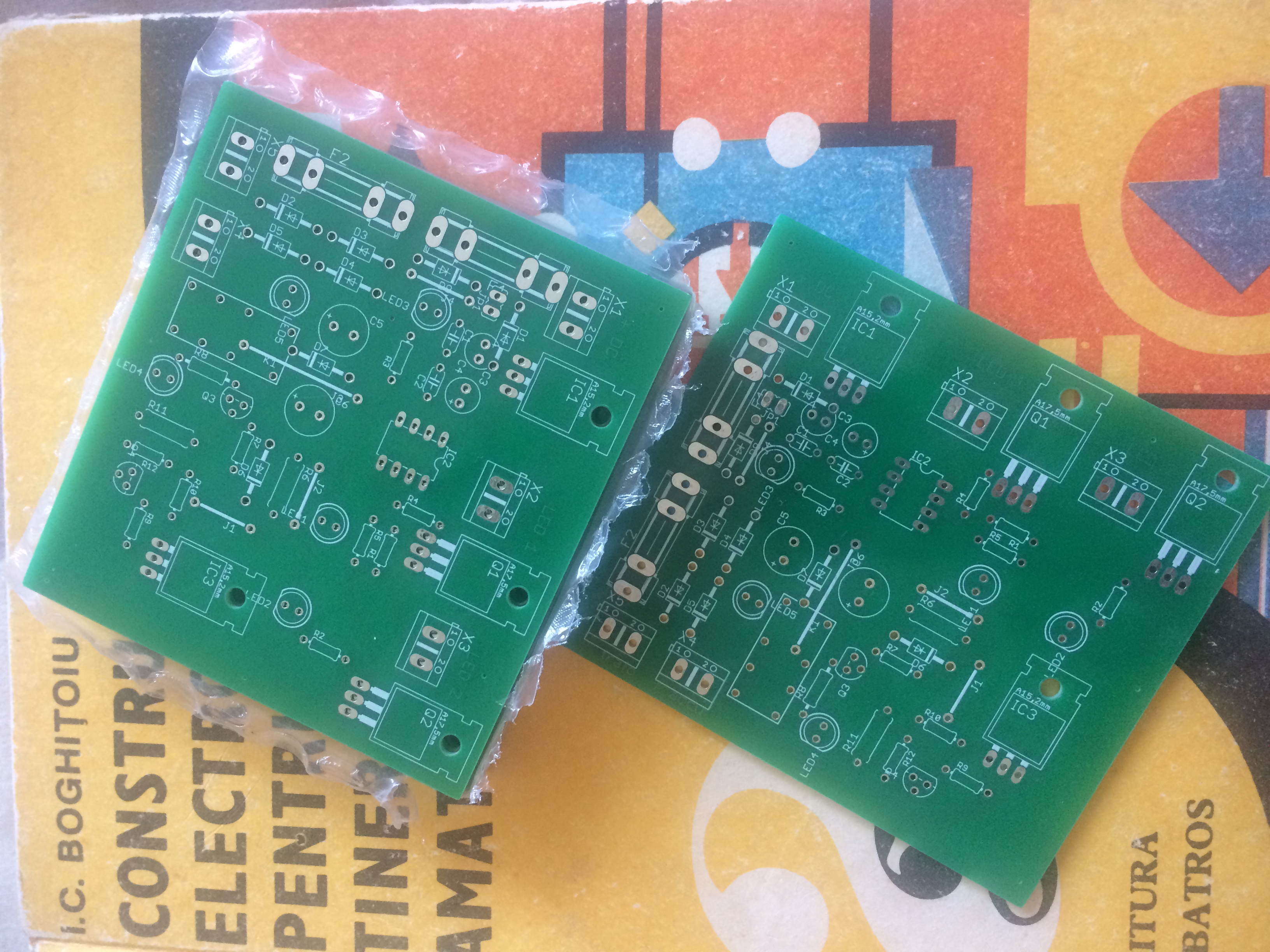

PS2: After long time (problems with carrier), I received PCBs:
