Pseudo-stereo adapter

TDA3810 is an old spatial, stereo and pseudo-stereo sound circuit who is hard to found, so I search replacement solution.

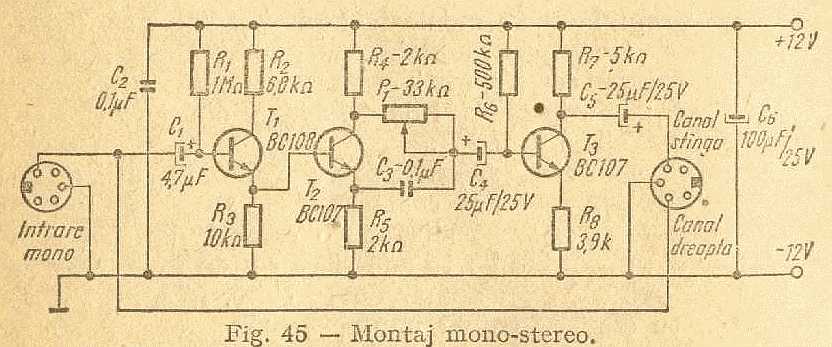

In an old romanian book named “Electronica peste tot’ (Electronics everywhere) writted by mr. I.C.Boghitoiu,  I found exactly what I want

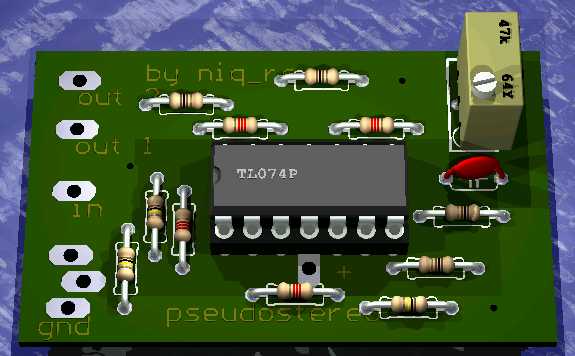

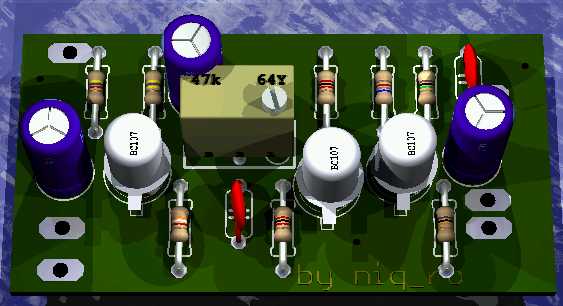

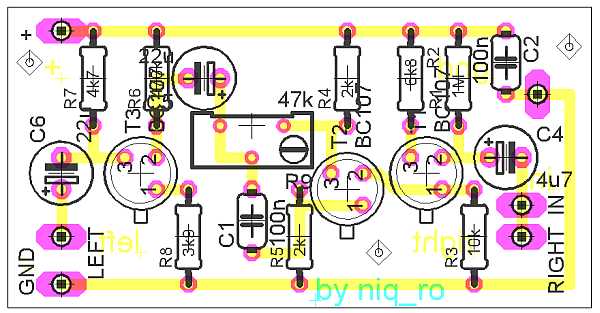

I design a version for board in Autodesk Eagle PCB software !

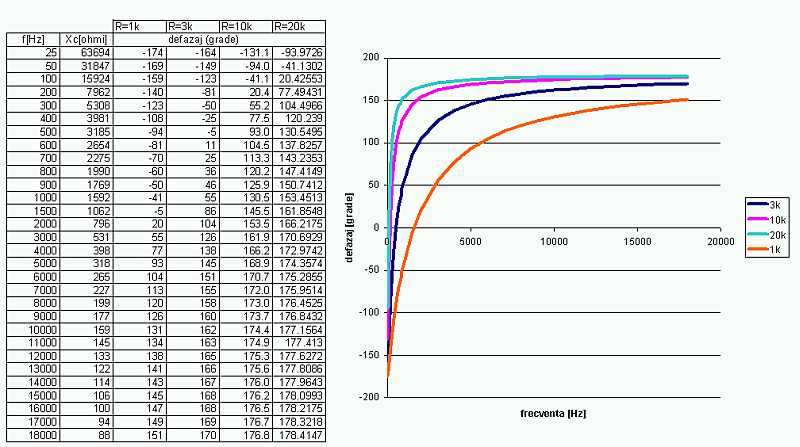

Phase shift depends by frequency theu C3 (variable reactance X3 with frequency) and P1 variable resitor value:

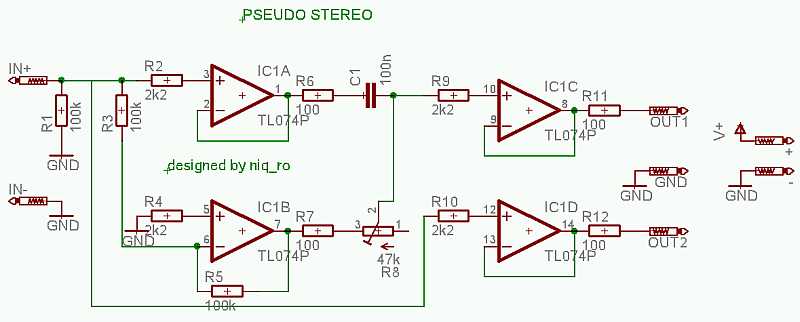

This circuit can be adapt to use with operational like TL074:

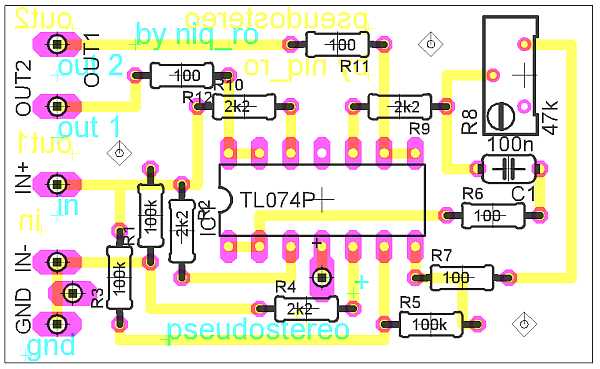

HERE is board in pdf format !
