Power supply with LM317 (1,3-25V/max.3A)

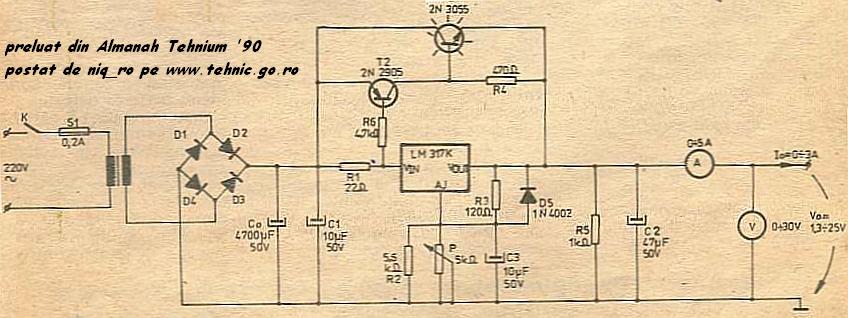

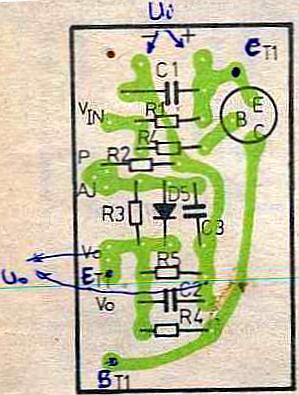

A good and simple lab power supply can made easy with LM317 and few componennts, like this schematic from an old roumanian almanac  TEHNIUM 1990:

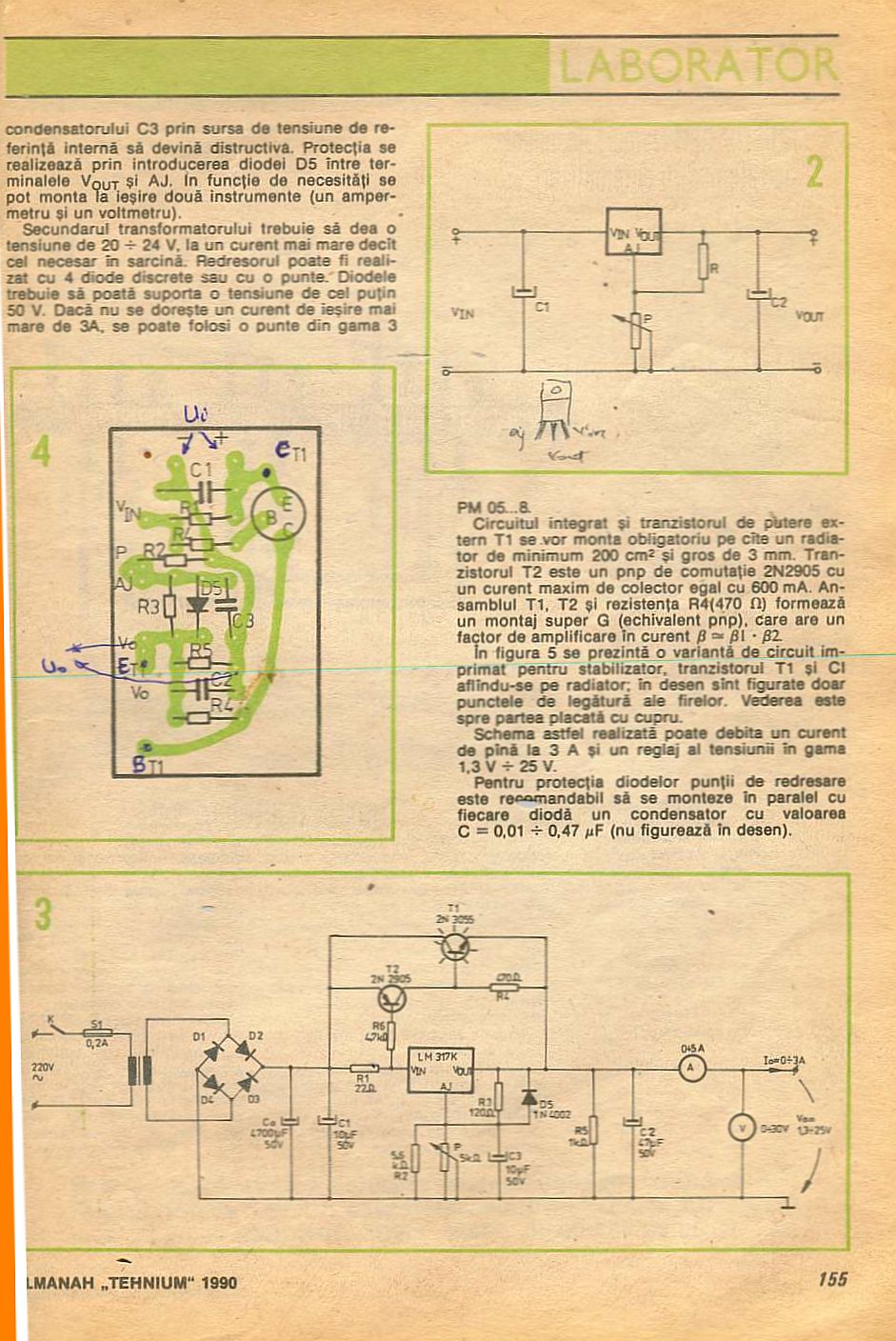

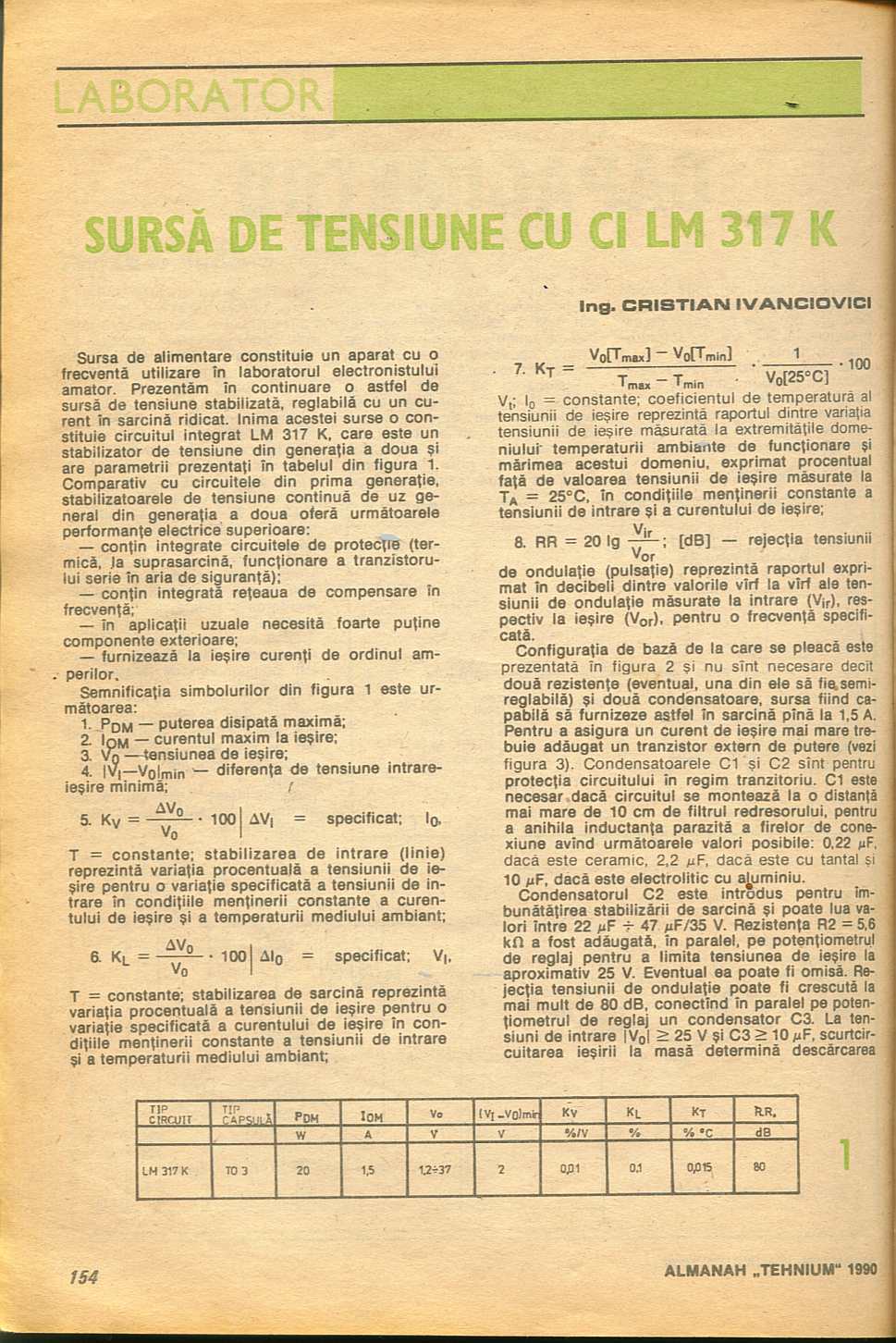

Original article is:

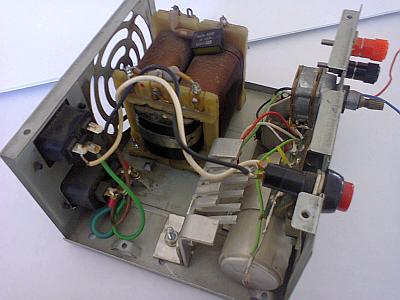

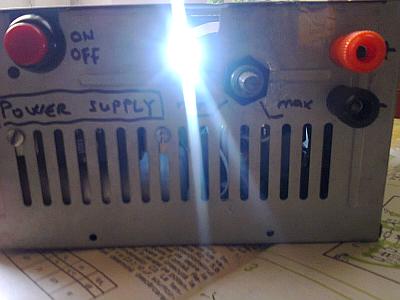

My power supply is:

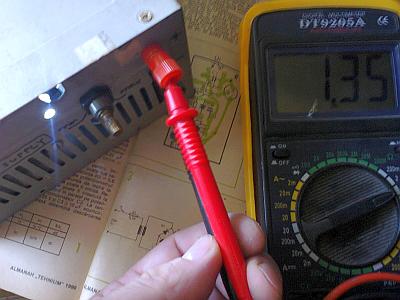

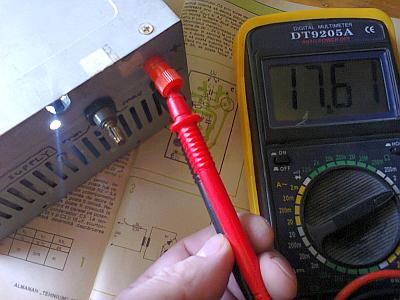

With an from vitange rounamin portable “TV Sport” I can adjust for 1,35 to 17,6V:
