LED bulb for solder gun

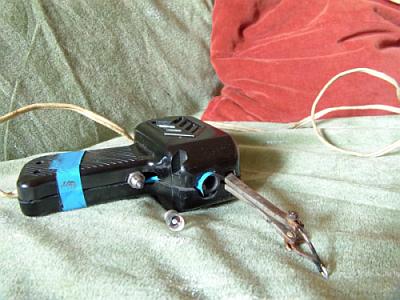

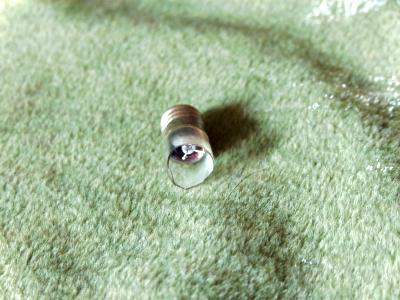

I use an old solder gun for made quickly some montages who is equipped with 6,3V incandescent bulb. So, Inadvertently, I broke the bulb.

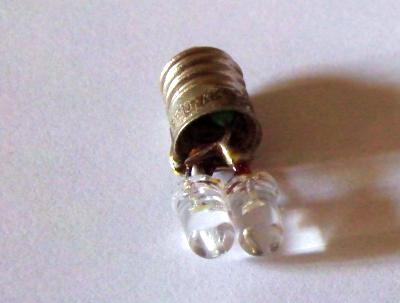

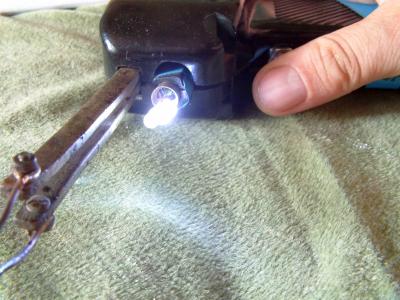

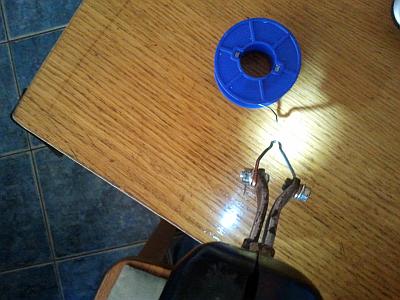

Because, I want to quick solve the problem, inspired by my friend, Narcis, I put 2 leds instead incandescent bulb:

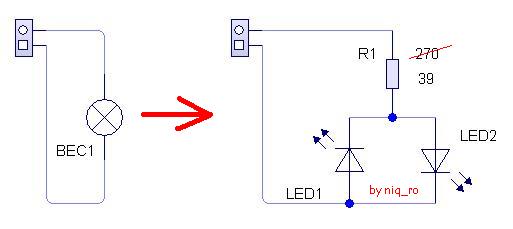

My schematic is

After first publish of my article in roumaniam language 2 friends made some led bulb

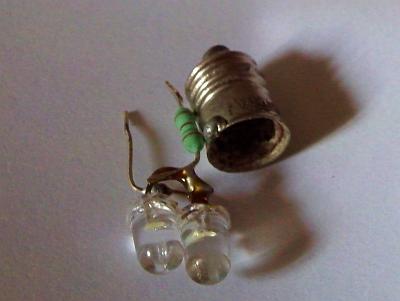

  • with 2 leds and 100 ohms resistor

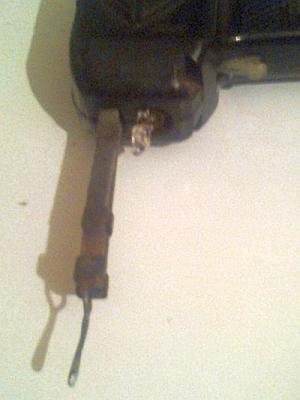

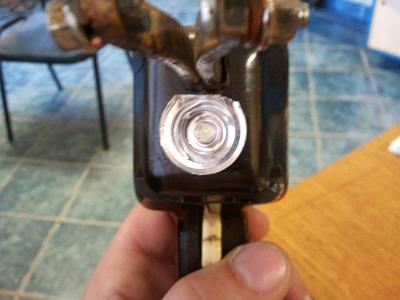

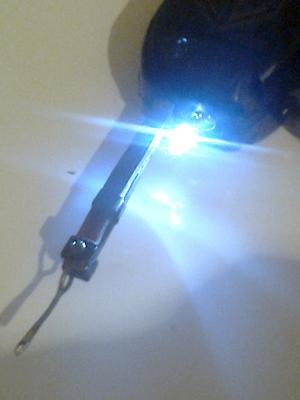

  • with an rectifier, ¬†one led and 100 ohms resitor + mirror flashligt
