120W PMPO PC speaker (reverse engineering)

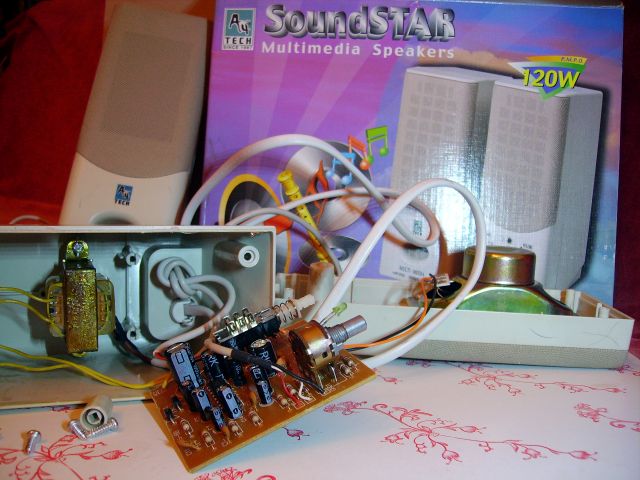

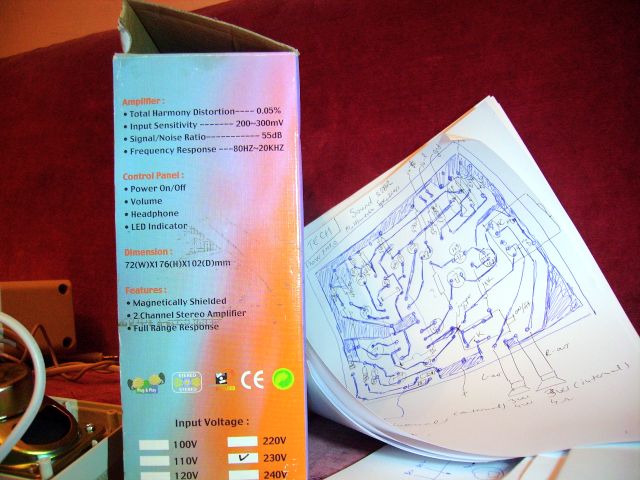

A long time ago I buy a cheap pear of active PC speaker named SoundSTAR Multimedia Speaker – 120W PMPO.

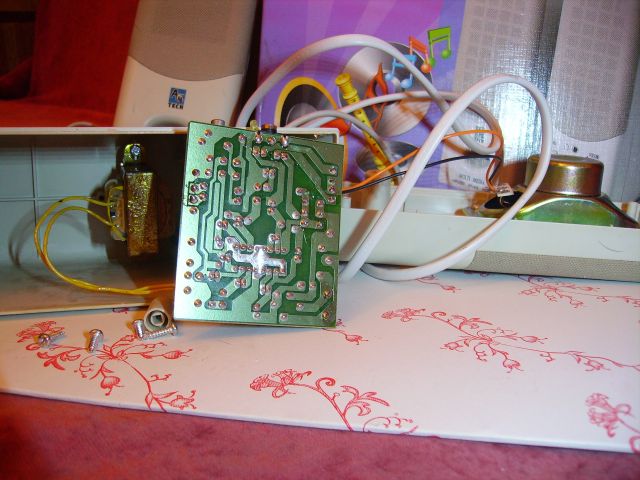

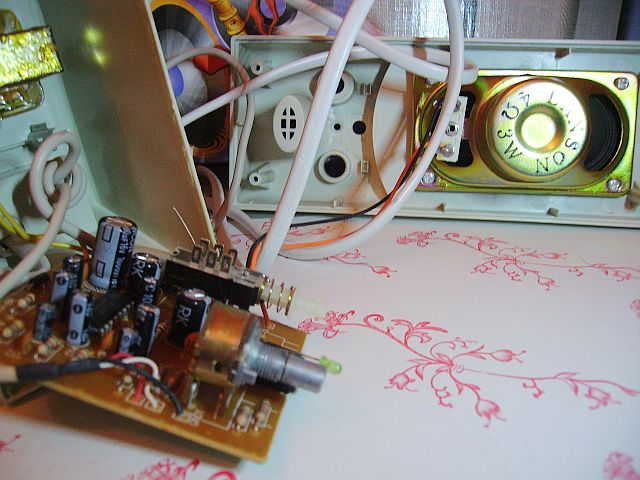

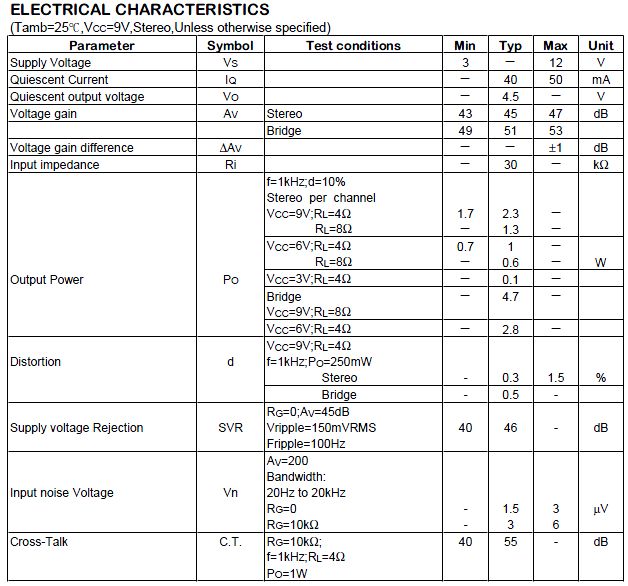

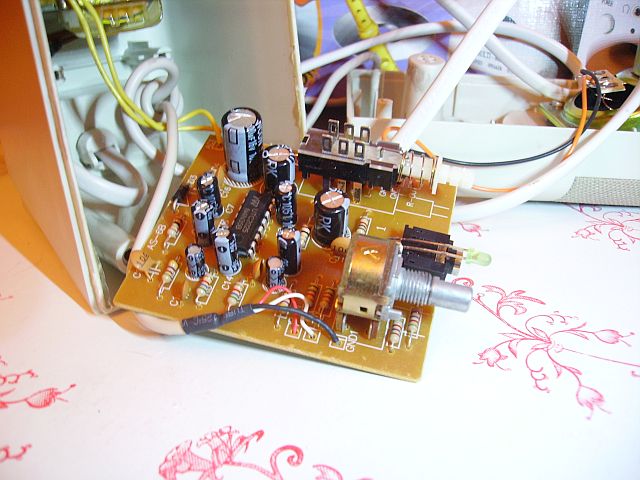

This audio amplifier is made with UTC2025 (similar with TEA2025 – see datasheet) and is 2×2,5W at 10% distortions.

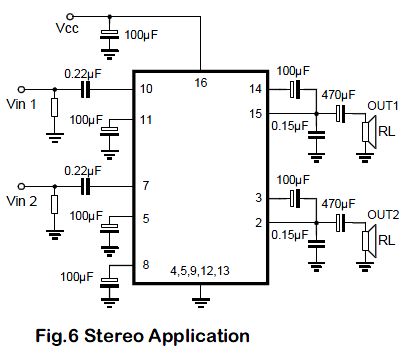

and tipical application is

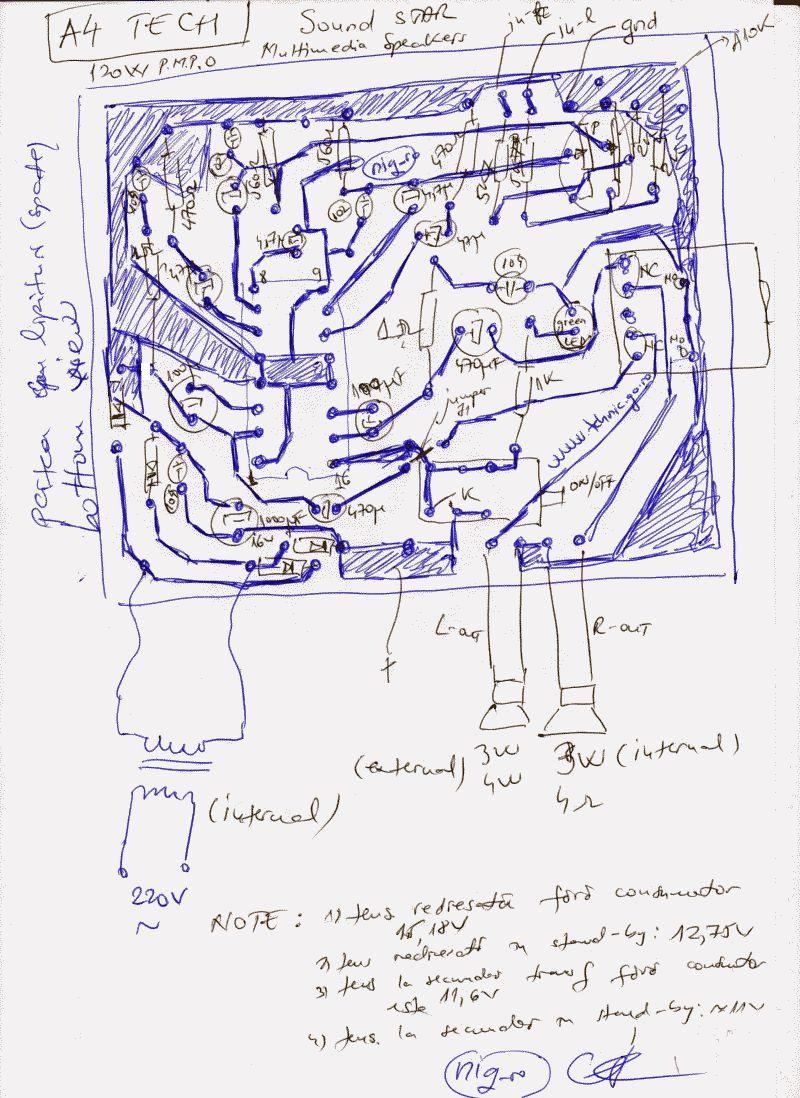

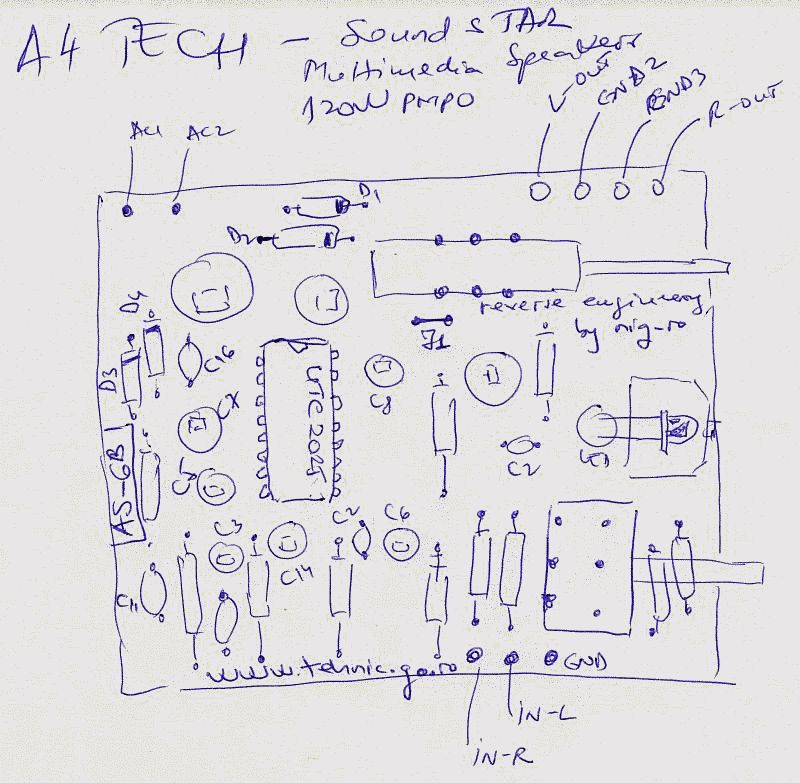

I made reverse engineering and is identical as “stereo application” from datasheet, just is added a diode rectifier with filtering capacitor.

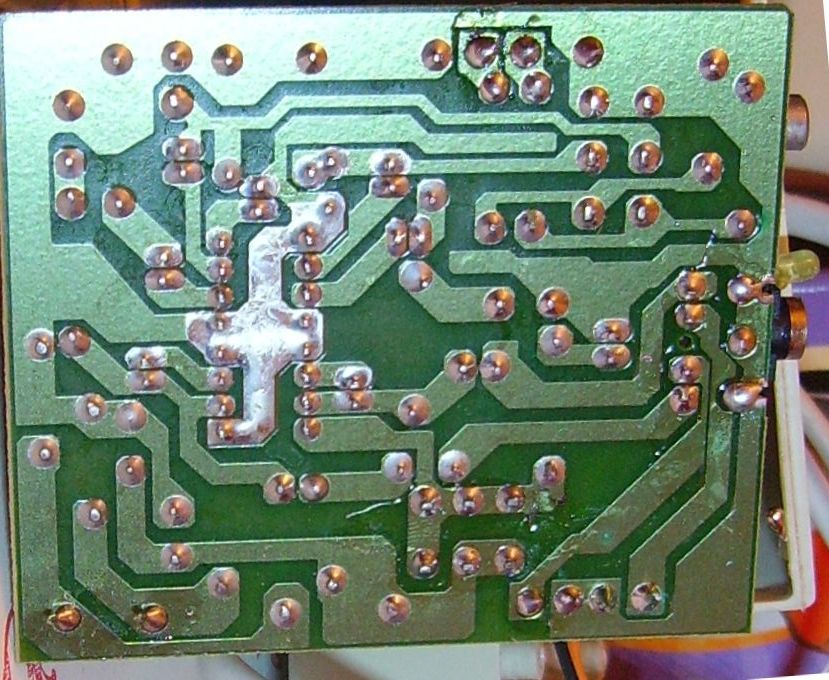

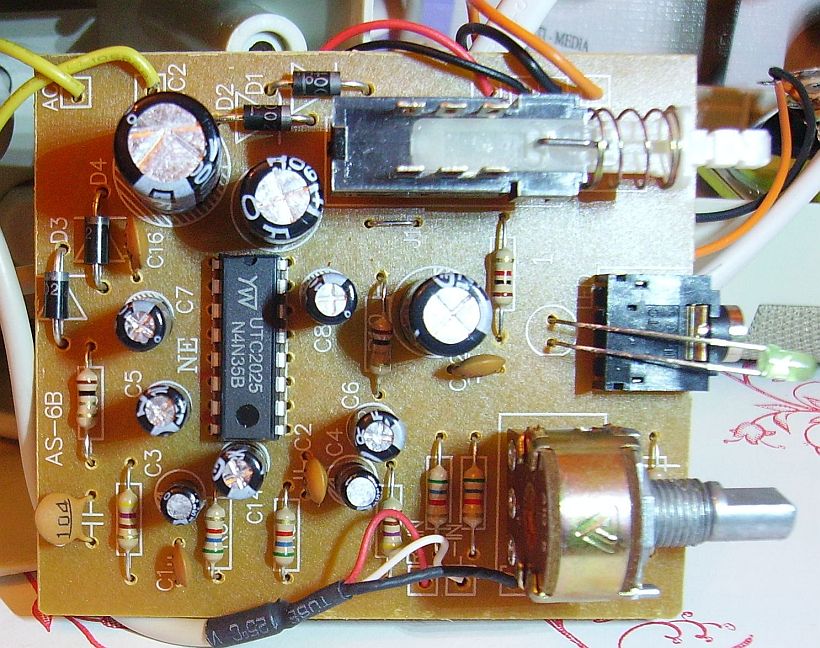

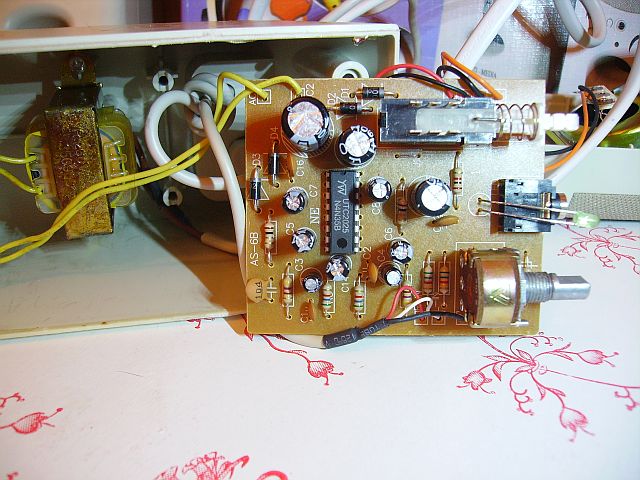

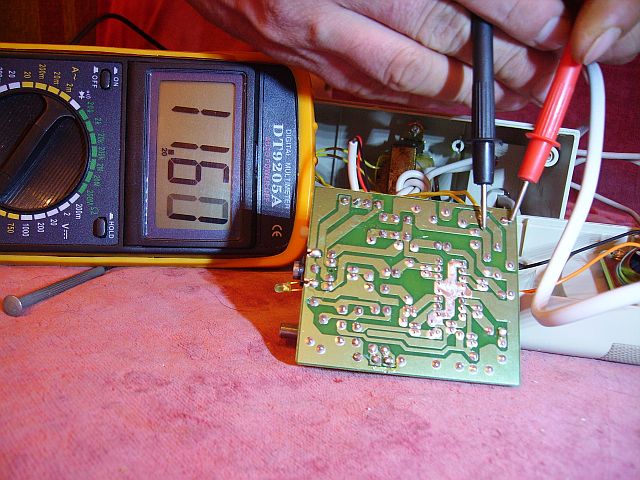

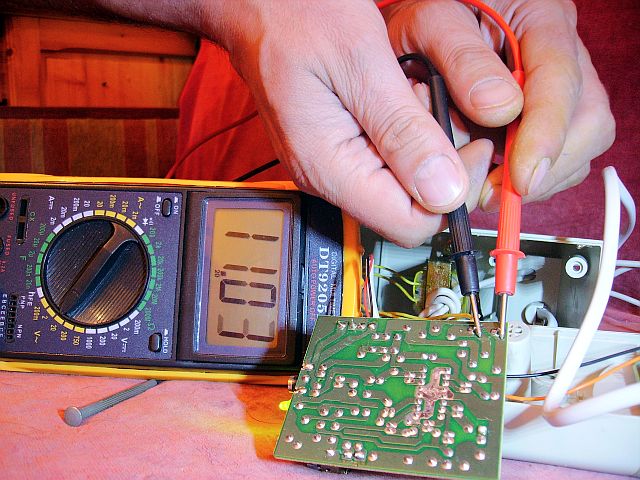

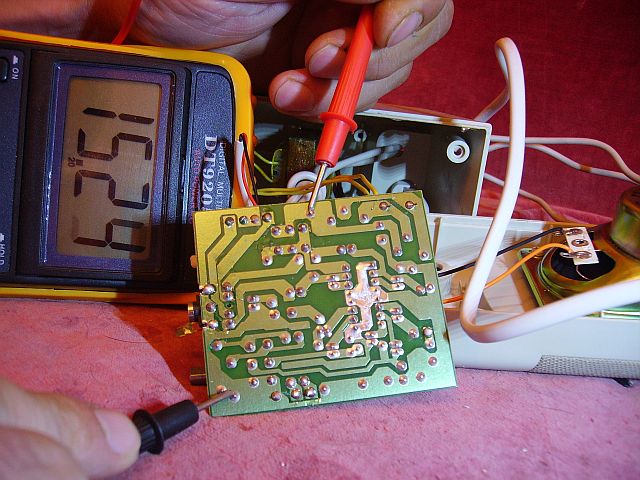

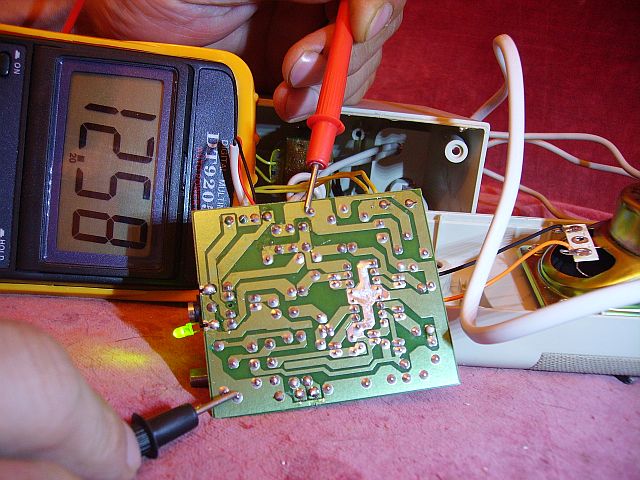

I use macro photos for reverse engineering.

Conclusion: Real 2Wis sell as 120 or 200W PMPO.
