Bridging Adapter For Power Amplifiers

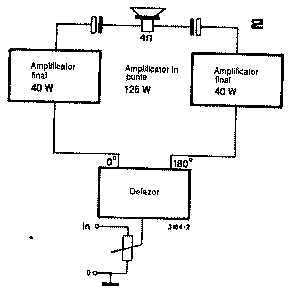

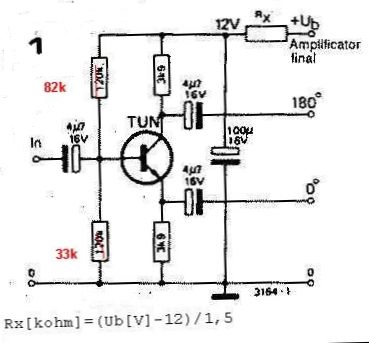

If you need more power can use bridging adapter, who must interconect like in this schematic

and schematic is very simple

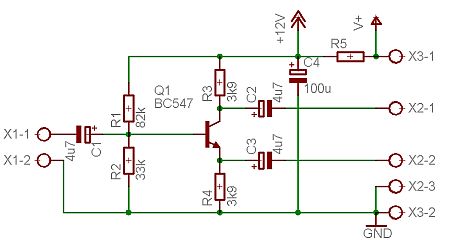

I redesign schematic in Autodesk Eagle PCB software:

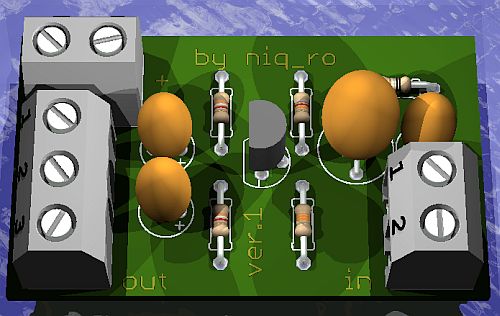

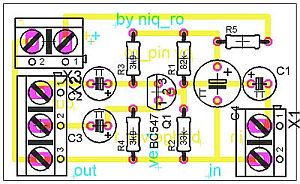

and made a version for board:
