60W/4ohms (32W/8ohms) MOSFET Audio Power Amplifier

For audio enthusiast, I publish an old project from ’80 years…

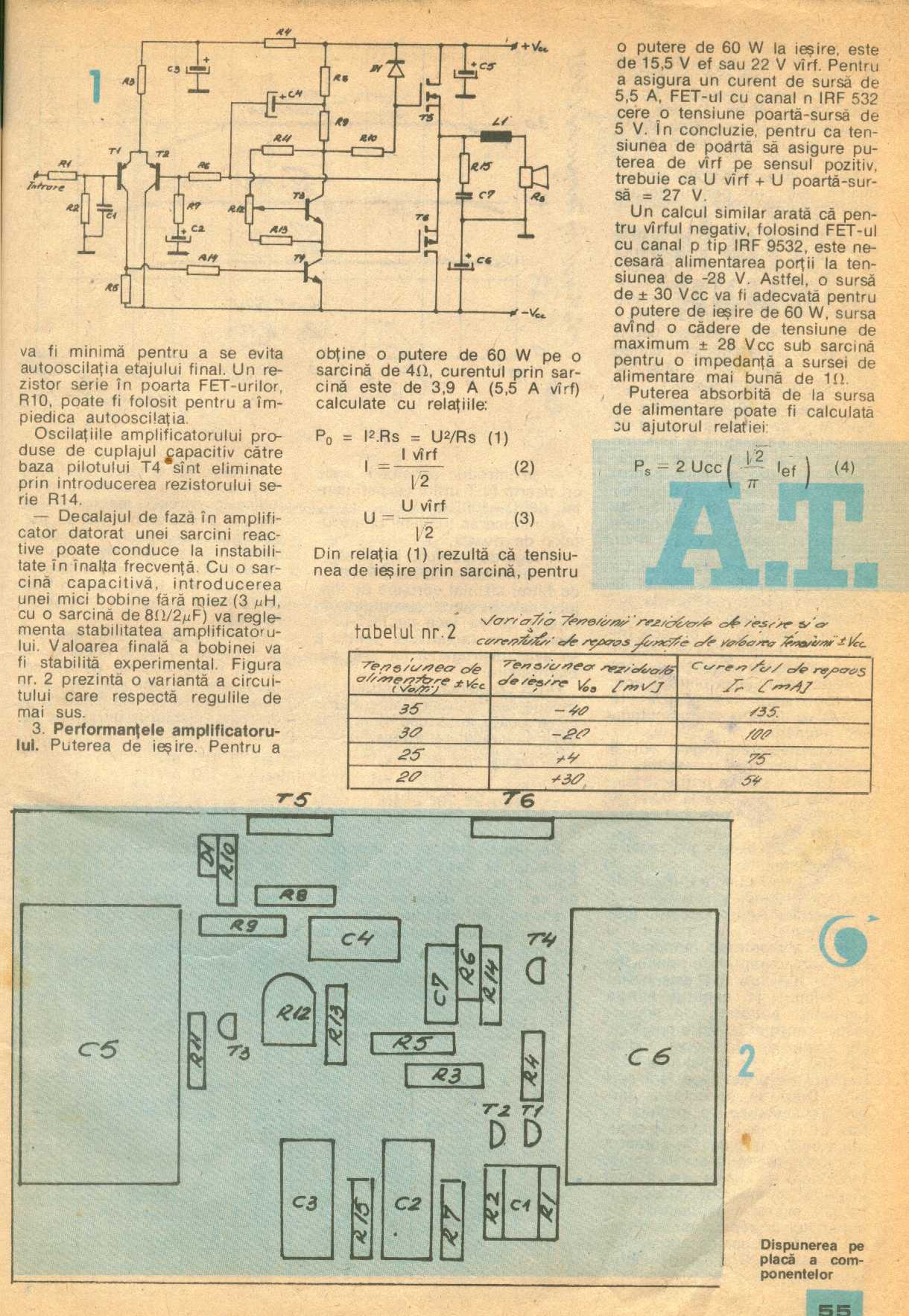

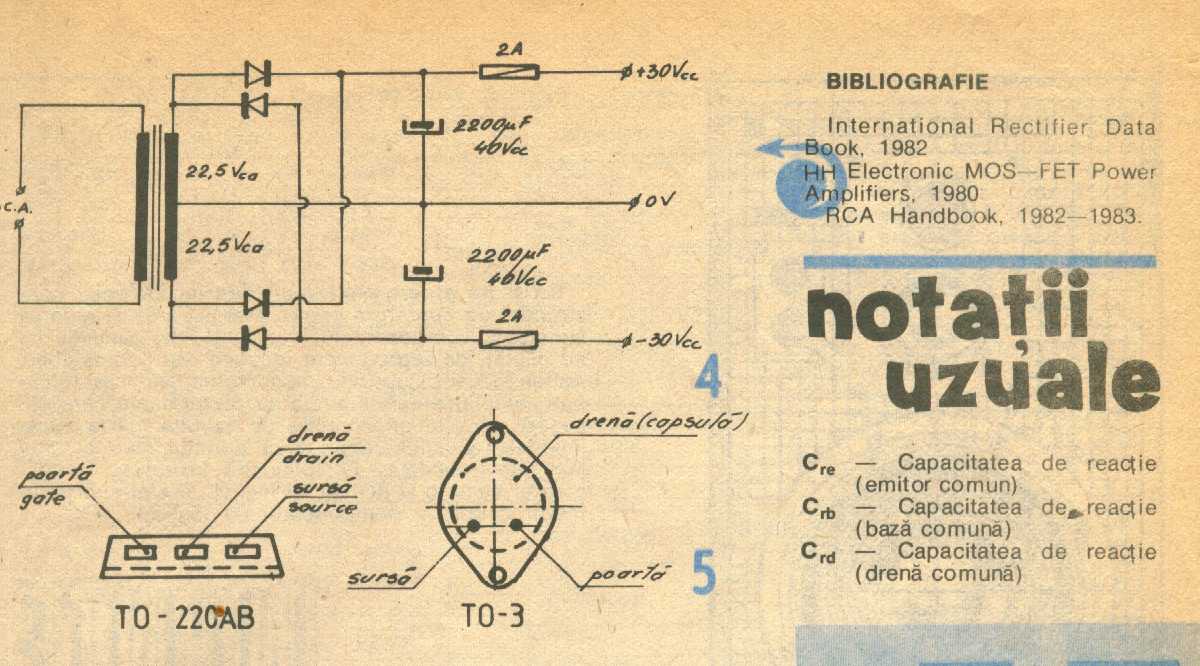

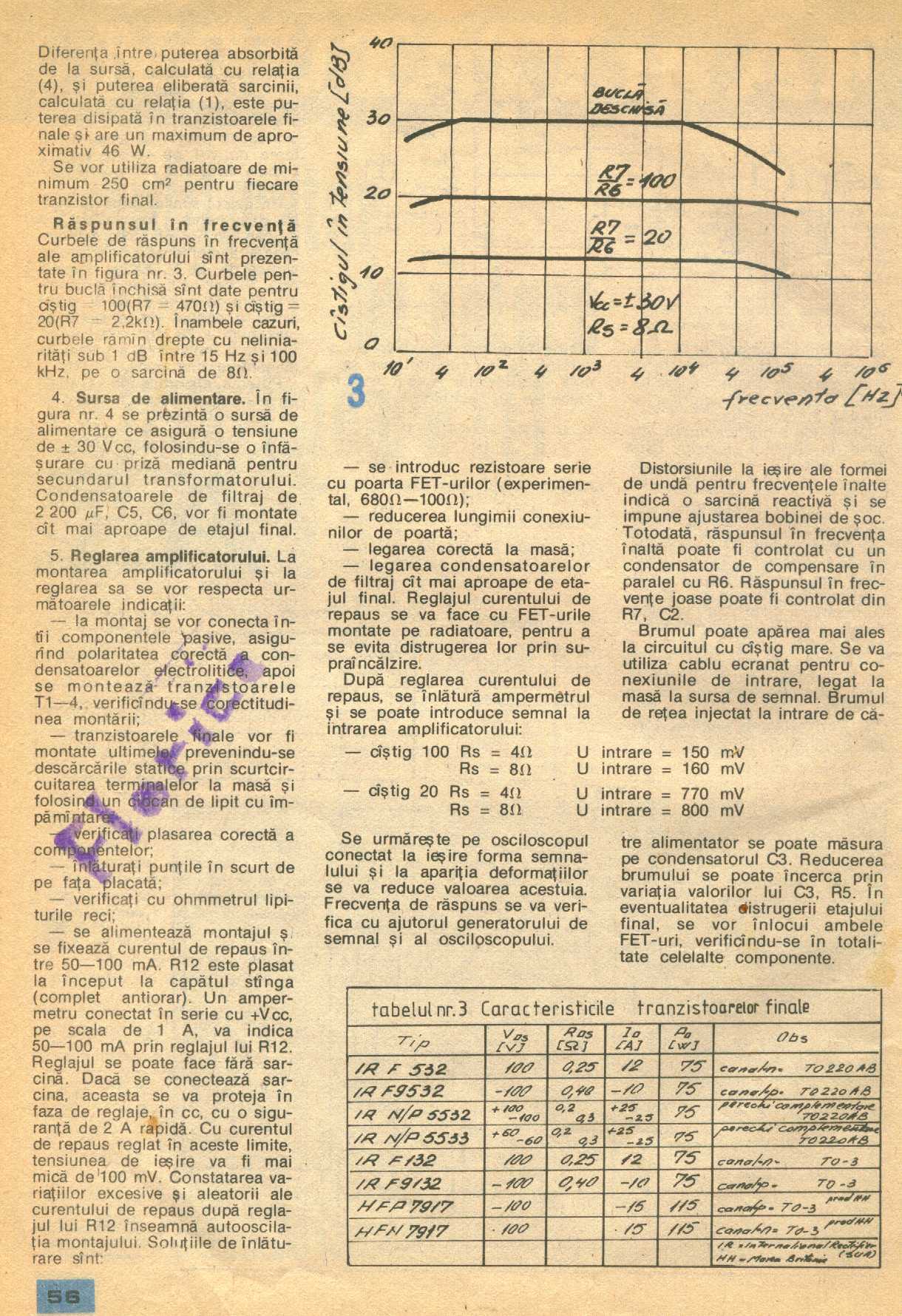

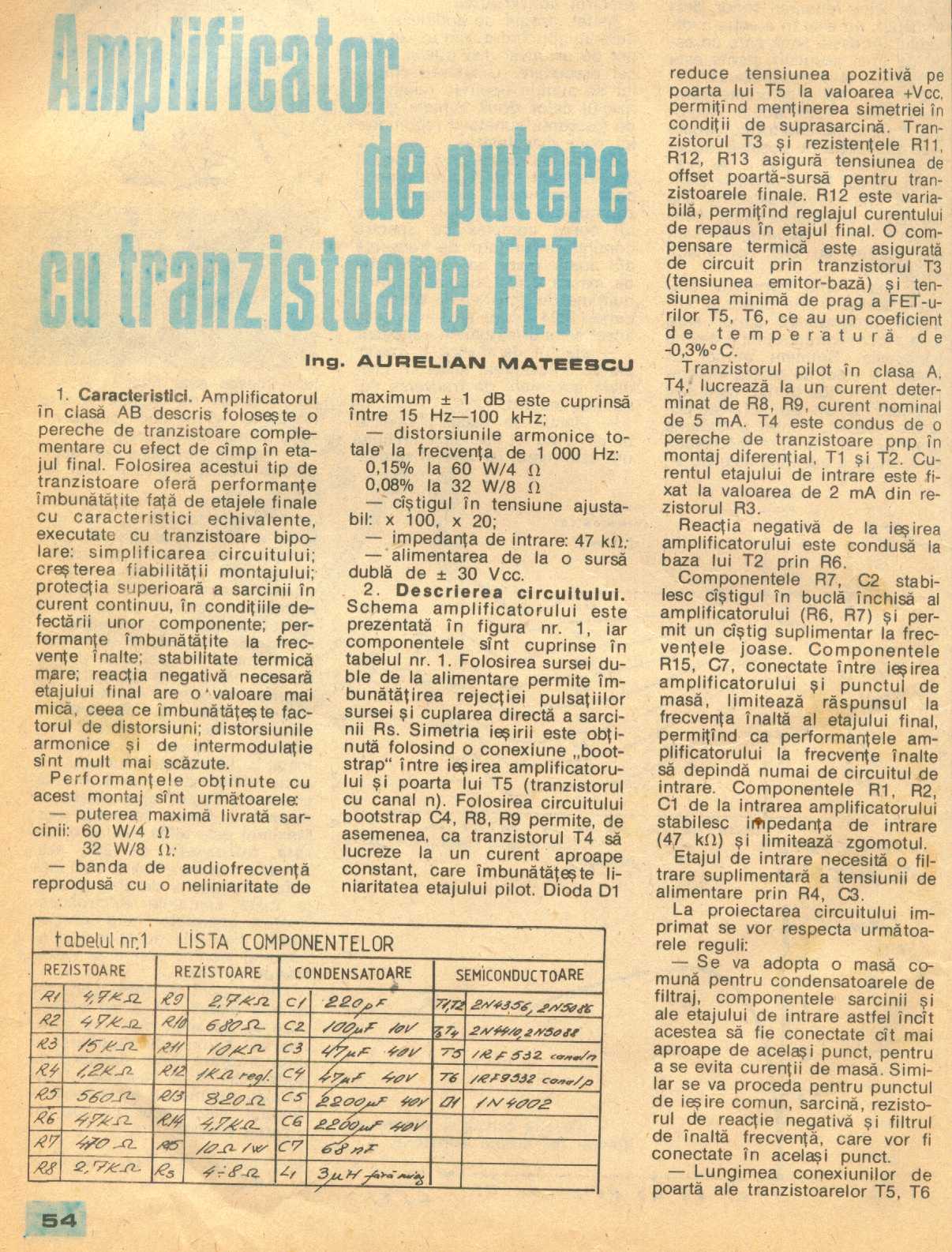

I found article “Amplificator de putere cu tranzistoare FET”  in 1985 Tehnium almanac … see here full article:

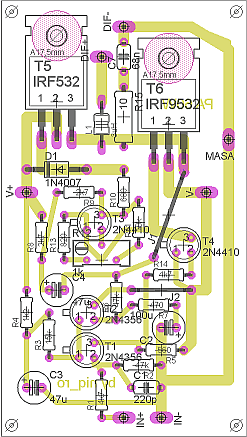

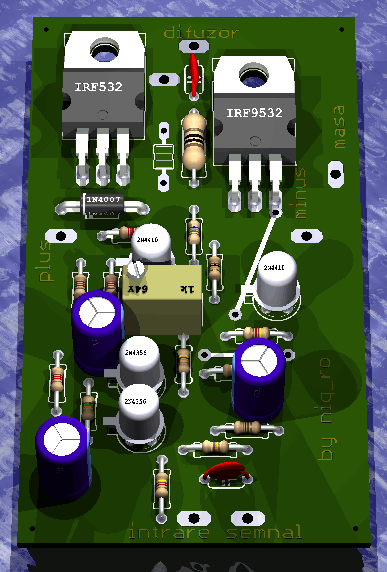

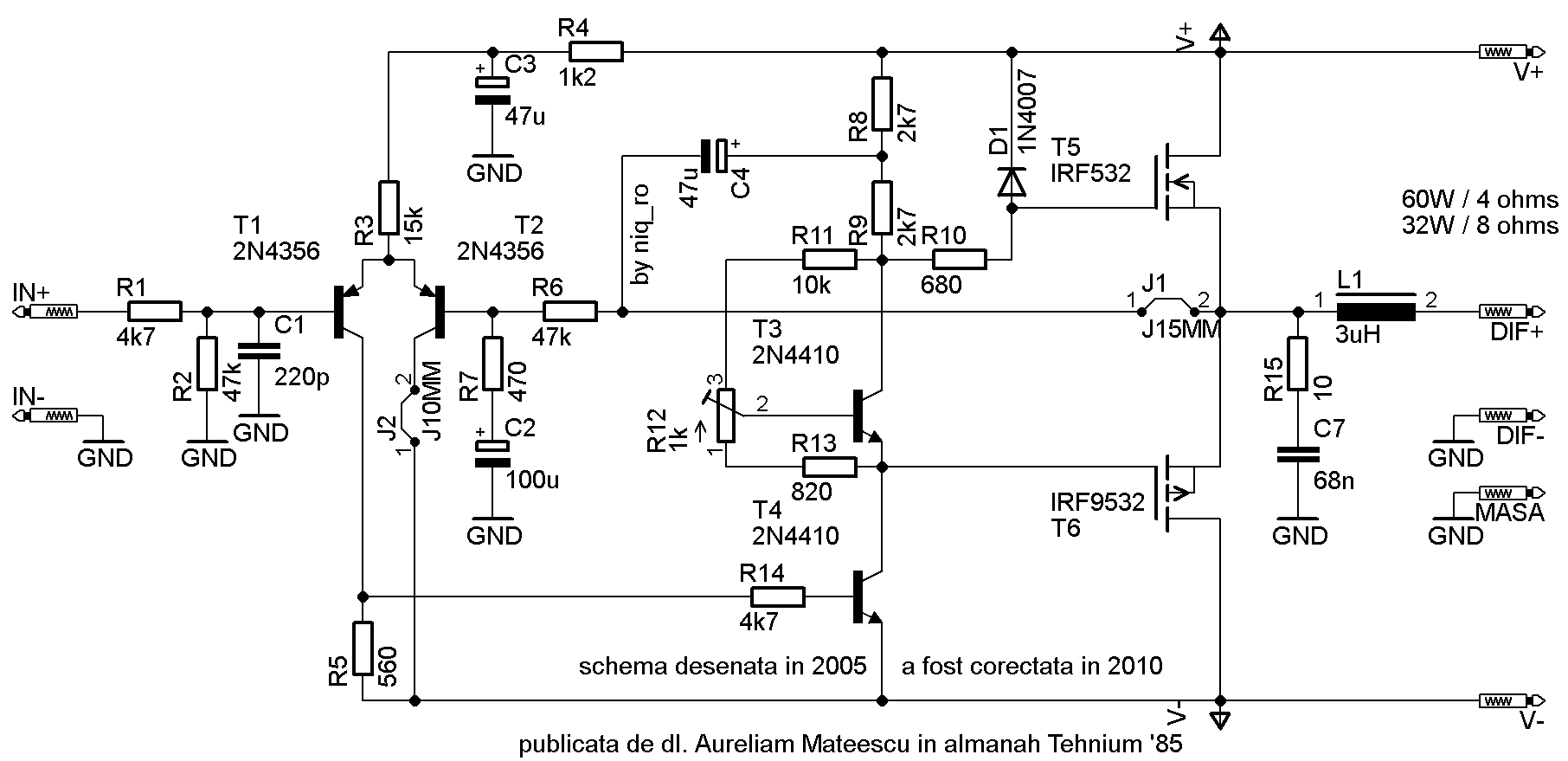

I redesigned schematic using Eagle PCB software:

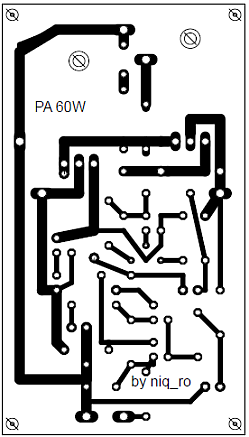

(You can download the PCB files in pdf format: classical style for tonner transfer methode and mirrored style ).

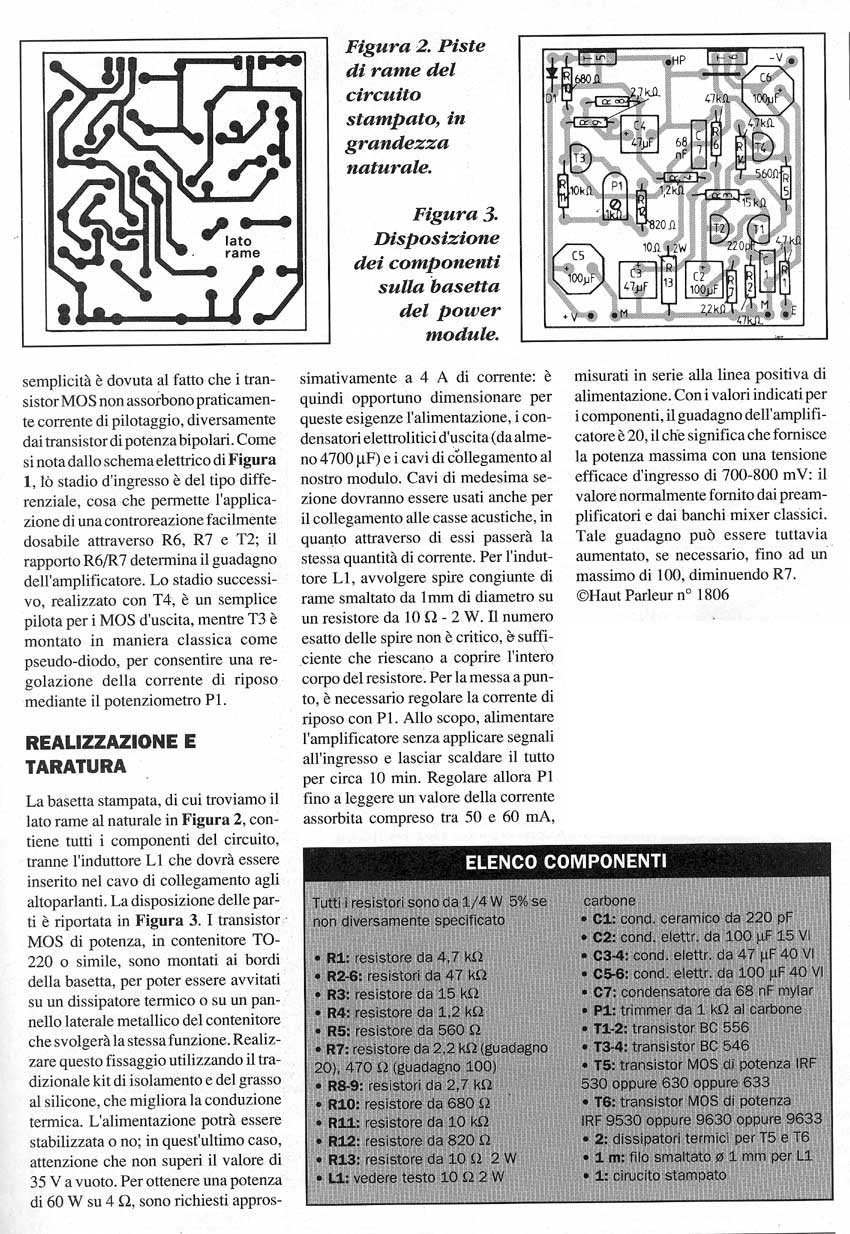

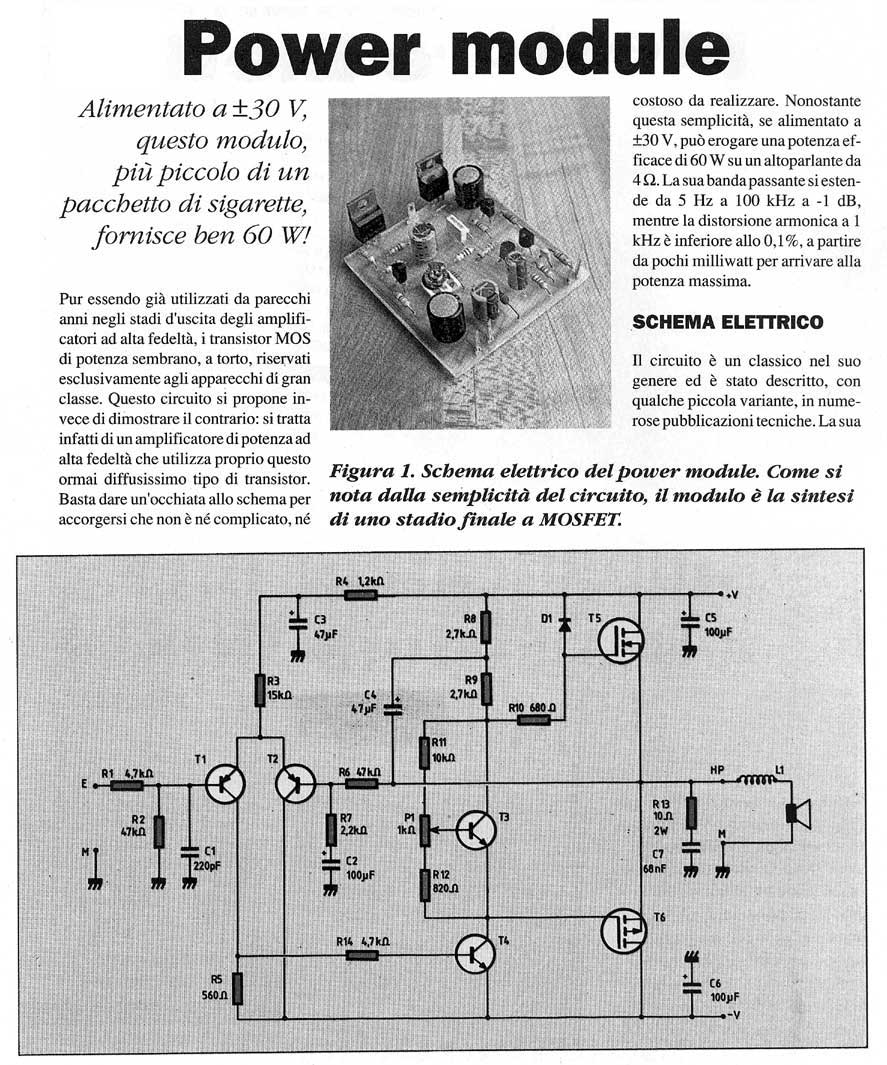

Future, I find an article in italian language (source is  unknown):

Just at end of article is put source: Haut Parleur magazine !
